Baker Products Portable Band Sawmill Wood Buddy

Description

Now there’s an even greater selection of Baker Portable Band Sawmills to choose from! If you’ve been left out in the cold by high prices, then take a look at the new, economical Wood Buddy by Baker Products.

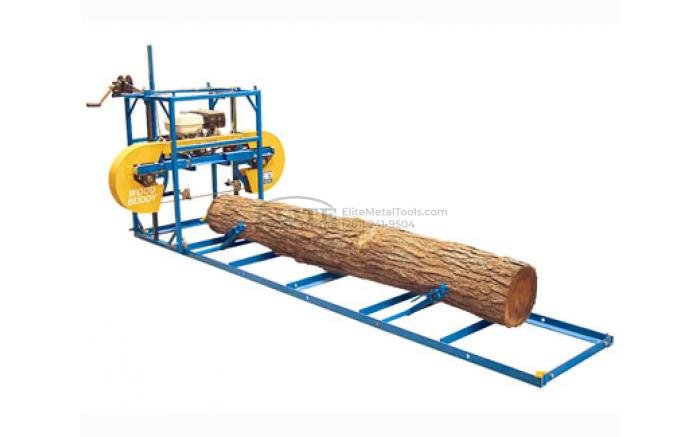

The Wood Buddy is designed to mill logs up to 28” diameter into valuable lumber and squares, and do it simply and economically.

The modular design allows you to attach additional 6’ track extensions, if necessary, to accommodate logs of any length. You can make the track as long as you need it to be.

If you don’t need a mill with all those extra “bells and whistles,” or if you own a wood shop or just want to turn fallen timber into nice boards and squares, then the Baker Wood Buddy is all you need.

Features

• The Wood Buddy can be transported by breaking it down to a 28” × 75” (71 cm × 191 cm) package, which can be put in the back of a pick-up truck or on a small trailer.
• 9-HP Honda gasoline engine, standard.
• Cuts logs up to 28 inches (71 cm) in diameter and up to 8½ feet (2.6 m) long with standard 12-ft track.
• Centrifugal clutch to engage blade.
• Simple, easy operation and minimal maintenance.
• Easy to push through the log.
• Easy log clamping system consisting of two log dogging clamps.
• Standard two 6-ft track sections (12ft total length) support logs up to 8½ feet long. Extra track sections, sold separately, can be added to accommodate logs of any length.
• 4-post carriage design
• Lumber scale has 4/4, 5/4, 6/4, and 8/4 that allows for the kerf of the blade.
• Thin kerf band blade is 11’ long by 1¼” wide and 0.035” thick.
• Easy manual blade height adjustment.
• 16-inch (40.6 cm) band wheels with heavy-duty pyrathane belt.
• One fixed and one adjustable blade guide.
• Double support band wheel system with 1½” pillow block bearings.

Specifications

• Production Rate: Varies according to type of material, thickness of cut, and rate of feeding
• Guides: Flat guide system, for higher production and accuracy and extended blade life?
• Band Blades: 11’ × 1¼” × 0.035” guage hardback
• Blade Kerf: 0.072 in. (approx. 2 mm)
• Band Wheels: 16 in. (40.6 cm) diameter, metal.
  • Dimensions & Weight:
  • Length: 12 ft. (3.658 m) (standard track length)
  • Width: 60 in. (152.4 cm). Track is 273/8 in. (69.5 cm)
  • Height: 51 in. (129.5 cm)
  • Weight: 500 lbs. (227 kg)
• Capacities
  • Cutting Capacity: 28 in. (71 cm) diameter maximum.
  • Log Length: 8½ ft with standard two 6-ft track sections. Longer lengths can be accommodated by adding optional 6-ft track extensions to the mill—as many as required.
• Power
  • Engine: 9-HP (6.71-kw) gasoline engine, with pull-start.

Options

• Lenox® WoodMaster™ Band blades
• Quik-sharp™ band blade sharpener
• Band blade setter
• Track extensions, in 6 ft. sections
• Cant hook
• Portable and stationary board edgers
• Planers and moulders

Additional Information

Product Documents

• Download Brochure
