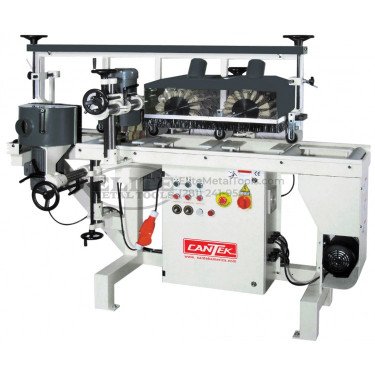

Cantek 230V 3-Sided Linear Brush Sander LBS-300-5S

Features

• Capable of sanding linear profiled material on 3 sides
• The main frame is fabricated of heavy steel plate and ribbed to minimize vibration and deflection.
• Centralized control panel for operator convenience

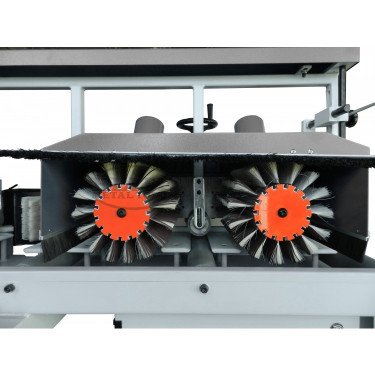

• (2) Sets of top brushing heads with variable speed adjustment by inverter.
• Left side sanding head is adjustable up/down, in/out and can be set on an angle
• Right side sanding head which can be adjusted up/down and in and out
• Left side sanding head is adjustable up/down, in/out, and can be set on an angle
• Side heads spindle rotation has variable speed adjustment by frequency inverter.
• Working height adjust by hand wheel.

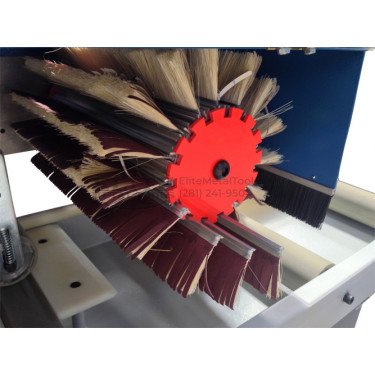

• Brushing head consists of cleaning brush units and abrasive cloth units. The dovetail pocket design allows for easy abrasive/brush replacement.
• Comes with (1) set of abrasives and brushes for each head.

Specifications

• Max. working width: 11″ (280mm)
• Max. working height: 4″ (100mm)
• Min. work-pieces length: 33″ (840mm)
• Min. work-pieces thickness: 3/8″ (9.5mm)
• Feed speed (Variable): 6.5 ~ 27 FPM (2~8.2 M/min)
• Speed of sanding wheel: 200 ~ 1200 RPM
• Top brush head motor: 2 x 3/4 HP (2 x .55KW)
• Left brush head motor: 1 x ½ HP (1 x 0.37KW)
• Right brush head motor: 1×1/2 HP (1 x 0.37KW)
• Left brush head motor: 1×1/2 HP (1 x 0.37KW)
• Conveyor motor: 1/4 HP (0.18KW)
• Moving brush head motor: 1/3 HP (0.25KW)
• Electrics: 230/3/60
• Machine dimension (LxWxH): 73” x 49” x 61” (1840 x 1230 x 1550mm)
• Packing dimension (LxWxH): 81” x 40” x 64” (2050 x 1010 x 1630mm)
• Net weight: 748 LBS (340 KGS)
• Gross weight: 1034 LBS (470 KGS)
