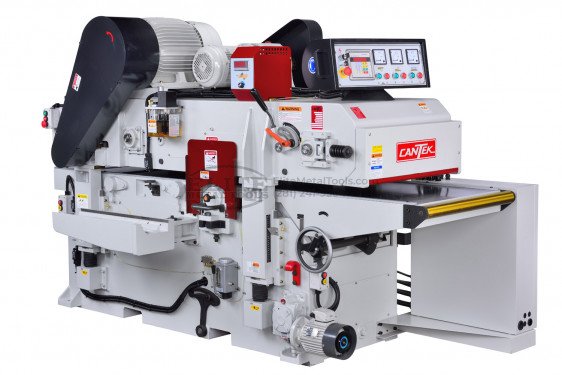

Cantek 25” x 20” Double Surface Planer GT635ARD-20

Features

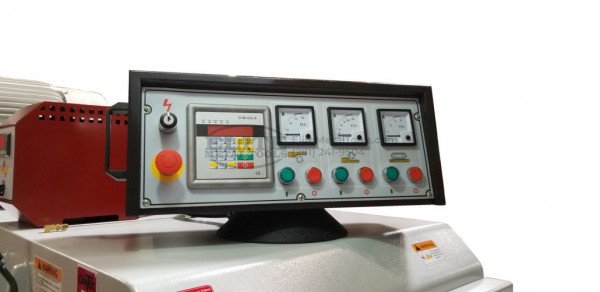

• Swivel Controls Panel – Easy to access controls on swivel mount. Digital thickness control in Inch or MM (Inch to 3 decimal places for extra precision). Amp meters for each head and feed system.
• Variable Feed Speed – Easy to access variable speed control allows you to dial in the correct feed rate for your surfacing application.
• Spring Loaded Conveyor – Pressure spikes are in an overlapping lay out to minimize gaps to ensure workpiece is held firmly.
• Automatic Lubricator – Auto oil lubricator provides metered and consistent lubrication to the Spring Feed System. Equipped with a manual lubricator to all elevation slideways.

Other Highlights

• 25″ x 20″ capacity
• Cast-iron machine body and table for vibration free cutting
• Cutterheads are spiral insert type with six (6) rows of carbide inserts
• 3 Bottom Outfeed Bed Rolls also included

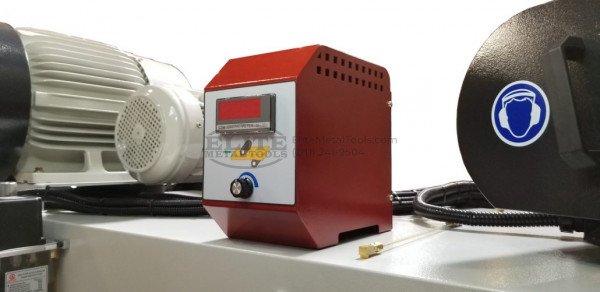

• Digital electronic thickness adjustment in INCH and MM. (Inch is to 3-deicimal places)
• Easy to access external handwheel adjustment of infeed bed
• Hard chromed work table
• Section Chipbreaker and top feed roller
• Rubber outfeed top roller to prevent chip marking
• Over thickness safety shut-off bar across infeed.
• Ammeter for each motor on control panel to monitor motor load

Specifications

• Max. working width: 25″
• Max. working thickness: 20″
• Min. workpiece length: 12.2″
• Bottom head motor: 20 HP
• Top planing head motor: 25 HP (Optional 30 HP Available)
• Feed motor: 5 HP
• Table elevation motor: 1/2 HP
• Knife dimensions: 30mmx12mmx1.5mm (92 per head -184 pcs. total)
• Cutterhead speed: 5400 RPM
• Feed speed (variable): 26-80 FPM
