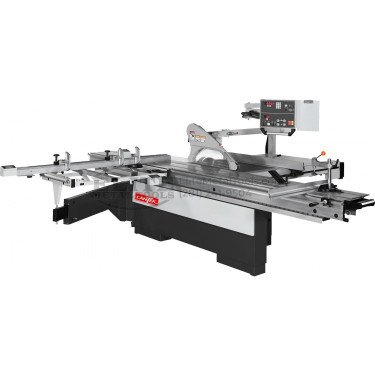

Cantek 5 HP Single Phase 10’ Sliding Table Saw with Scoring D405M-10

Features

• 10-foot precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides
• Solid cast iron main table which is ground and polished
• Heavy-duty outrigger for strong support of work-piece during cutting operations
• Solid cast iron rip fence with manual fine adjustment and locking lever
• Manual saw blade rise/fall & tilting, conveniently located on the operator side of the machine
• Pointer indicator for accurately displaying blade angle

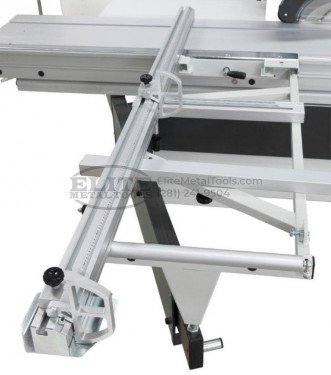

• Aluminum extruded crosscut fence with two flip stops with dual metric and inch rulers
• Eccentric hold down clamp, table return handle, and wedge for solid wood ripping included

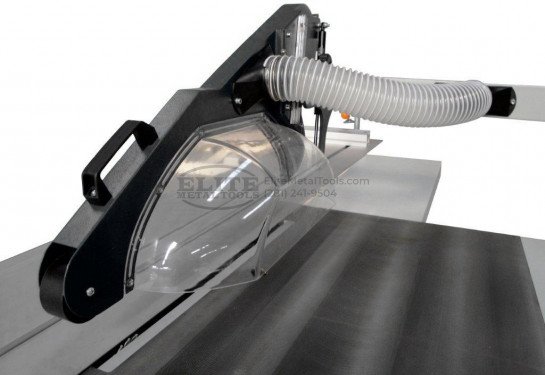

• CE overhead saw blade guard with built in dust port included

Specifications

• Sliding table dimension: 126″ x 14.9″
• Cast iron table: 21.6″ x 35.3″
• Extension table (rear): 37.5″ x 35.3″
• Extension table (front): 12.6″ x 32.7″
• Table size: 59″ x 68″
• Round rail: 1.97″
• Maximum main saw blade dia.: 14″
• Max. cutting height at 90°: (355mm) 4.13″
• Max. cutting height at 45°: (355mm) 2.76″
• Main motor power: 5 HP
• Main blade speed (3): 3000/4000/5000 RPM
• Scoring saw blade: 120 mm
• Scoring saw blade bore: 20mm
• Scoring blade motor power: 1 HP
• Scoring blade speed: 8000 RPM
• Cutting width: 51.2″
• Cutting width adjustment: Manual
• Main saw blade tilting adjustment: Manual (0°~45°)
• Main saw height adjustment: Manual
• Scoring saw adjustment: Manual
• Dust ports (machine / guard): 4.72″ / 2.5″
• Machine total weight: 1612 lbs.
• Machine shipping details: 1428 lbs (83″x46″x44″)
• Sliding table shipping details: 380 lbs (137″x20″x15″)
• Overhead guard shipping details: 80 lbs (40″x36″x6″)
