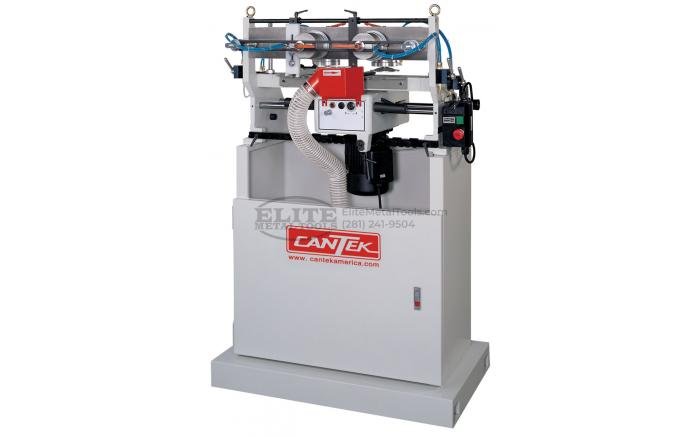

Cantek Single Phase Manual Dovetail Machine JDT-65

Features

• Max. workpiece size 59″ x 16 ½”
• Workpieces are clamped by air clamps.
• Enclosed-type stand.
• Equipped with an indication bar for indicating cutting position.
• Tenon width can be micro-metrically adjusted in 2 mm.
• Tenon and mortise depth are conveniently adjusted according to the thickness of workpiece.
• Equipped with one four-sided template providing four types of pitches between dovetails.
• Standard pitch 1″, 1 ½”, 2″ and 2 ½” (Other sizes available on request)
• The spindle accommodates 12 mm T.C.T. cutter bit.

Specifications

• Min. workpiece size: 7.9″ x 2.4″
• Max. workpiece size: 59″ x 16.5″
• Min/Max dovetail height: 0.2″ ~ 7.1″
• Min/Max front thickness: 0.28″ ~ 2.36″
• Min/Max side thickness: 0.28″ ~ 3.6″
• Number of spindles: 1
• Spindle speed (RPM): 18500 RPM
• Dovetail spacing: 1″, 1.5″, 2″, 2.5″
• Table height from floor: 46.5″

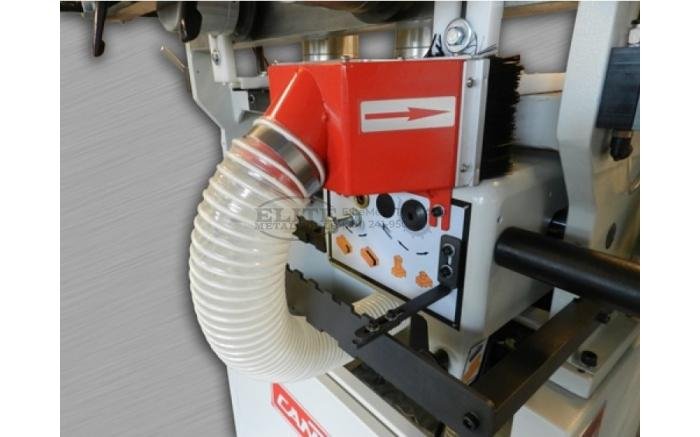

• Dust collection ports: front: 2.5″ / rear: 4″
• Air pressure required: 6 bar
• Motor power: 1 HP
• Shipping dimensions: 42” x 31” x 63”
• Machine weight: 440 lbs.
• Shipping weight: 539 lbs
