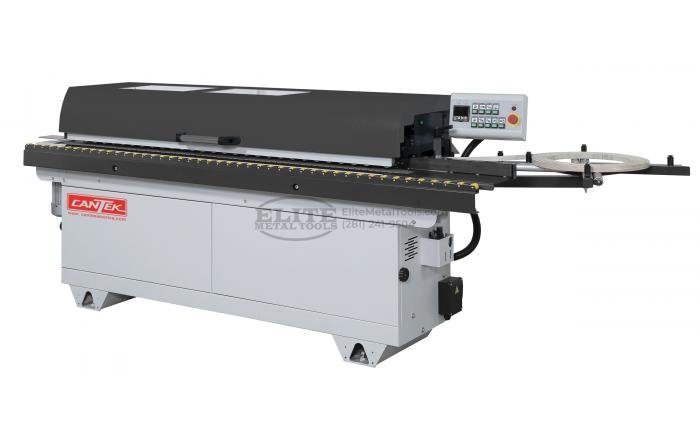

Cantek Standard Three Phase Automatic Edgebander with Pre-milling MX350M

Description

The MX350M from Cantek is designed to be a compact & durable entry level edgebander with pre-milling function offered at an affordable price. This machine is equipped with pre-milling, end trimming, flush trimming, PVC scraping, and buffing.  User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm & wood strips up to 4mm.

Features

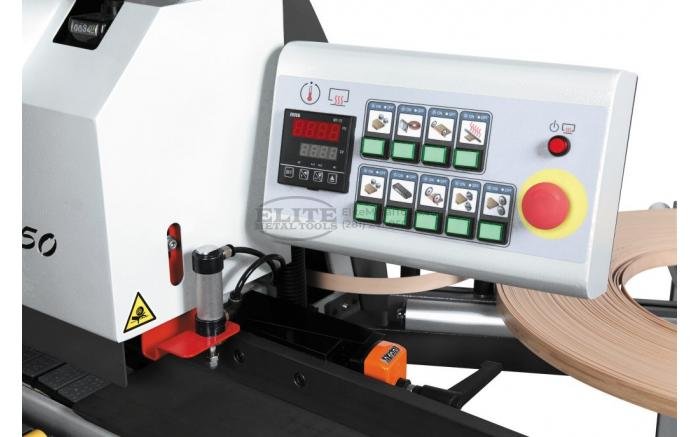

• PLC control system with LED display and keypad
• Work-piece is fed by chain
• Edge coil support plate: Ø 800 mm (31.5”), for PVC/ABS
• Automatic edge feeding with a thickness capacity of 0.4–3 mm; strip material up to 4mm can be hand-fed
• Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.
• 1.2 kg (2.64 lb) Teflon-coated hot-melt glue pot
• Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)

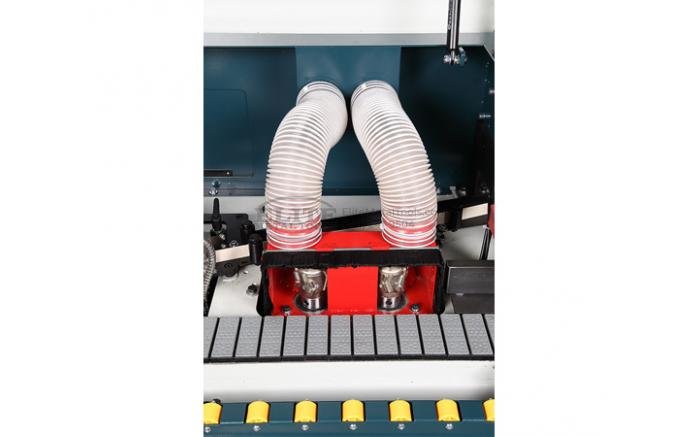

• Pre-milling unit with (2) counter rotating diamond cutterheads for precise edge quality.
• 8800 RPM dual saw blade (80mm / 3.15”) end trimming unit
• 10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming
• Top & Bottom trimmers use copy tracing wheels for optimum finishing results without scratching the face of the workpiece
• Radius scraper with 2mm radius
• 2800 RPM top & bottom buffing units
• Heavy duty pressure beam with extendable work-piece support
• Heated infeed fence for pre-heating the panel for optimum glue penetration
• Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

Specifications

• Feeding speed: 23 FPM (7 m/min.)
• Panel thickness: 0.472~1.77” (12~45 mm)
• Edge thickness: 0.0158”~0.118”  (0.4 ~ 3 mm)
• Minimum panel width: 3.54” (90mm)
• Minimum panel length: 3.54” (90mm)
• Working table height: 33.7” (856mm)
• Extraction connection: 4” (100mm)
• Pre-milling spindle speed: 9000 RPM
• Top & bottom trimmer RPM: 10500 RPM
• Motor: Three Phase
• Max. machine dimensions (LxWXH): 126” x 47 ¼” x 47 ¼” (3200 x 1200 x 1200mm)
• Machine weight: 1162 lbs (528 kgs)
• Shipping dimensions (LxWxH): 111” x 28.4” x 52” (2820 x 720 x 1320mm)
• Shipping weight: 1452 lbs (660 kgs)
