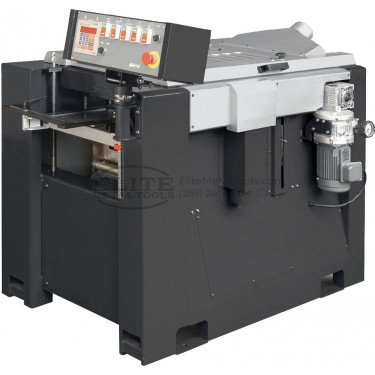

Cantek Three Phase 4 Side Planer Moulder M412

Features

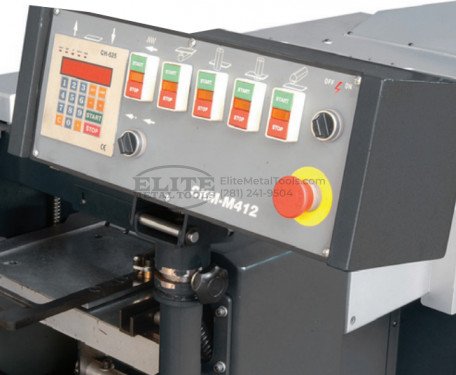

Centralized Control Panel

• All motion controls of the machine are centralized on the control panel, located at the left side of the machine for easy access and operation convenience.
• Each cutterhead is individually controlled on the control panel

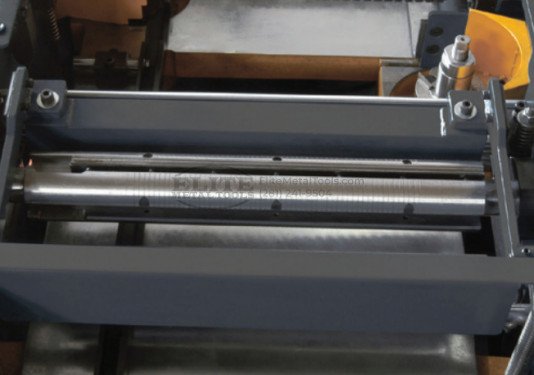

Top Horizontal Spindle

• Equipped with two planer knives and two pattern knives for planing and moulding operations at a time.

Left Vertical Spindle Adjustment

• The left vertical spindle can be adjusted in forward and backward direction to suit workpiece width. A mechanical meter is equipped for accurate reading of the spindle adjustment amount.

Table Adjustment

• The entire table can be raised or lowered by turning a handwheel, equipped with a mechanical meter for accurate reading of the table adjustment.

Variable Feed Speed

• Variable feed speed is achieved through a disco type variable speed unit speed combined with gear reducer, making this moulder ideal for cutting soft and hard wood material.
• Variable feed speed range is 11-52 feet per minute

Other Highlights

• Allows for 4 cutting modes: single two, three and 4-side planning and moulding.
• Individual powerful motor drive for each spindle.
• High quality disco type variable feed speed unit.
• Automatic machine stop when top guard is opened.
• In feed & outfeed table extensions (optional) for firm support of large word.
• Equipped with 3 depth of cut control plates for bottom cutterhead.
• Sea-thru top guard for viewing cutterheads.
• Comes with a set of cutterheads (top/bottom/side/side)

Specifications

• Planing:
  • Width: 13” (330MM)
  • Depth: 7/16” – 9” (12 – 230mm)
• 2-Side Planing/Moulding:
  • Width: 13-5/8″” (346mm)
  • Depth: 7/16” – 9” (12 – 230mm)
• 4-Side Planing/Moulding:
  • Width: 0 – 12” (0 – 305mm)
  • Depth: 7/16” – 4” (12 – 100mm)
• Top Horizontal Spindle:
  • Width: 17-15/16” (455mm)
  • Max. planing depth: 5/16” (8mm)
  • Max. moulding depth: 3/4” (19mm)
  • Speed: 7000 RPM
  • Cutterhead diameter: 2-7/8” (72mm)
  • Motor: 7-1/2HP (5.5Kw)
• Bottom Horizontal Spindle:
  • Width: 13-5/8” (346mm)
  • Max. planing depth: 1/4” (6mm)
  • Max. moulding depth: 3/16″ (5mm)
  • Speed: 7000 RPM
  • Cutterhead diameter: 2-7/8” (72mm)
  • Motor: 5HP (3.7Kw)
• Right & Left Vertical Spindles:
  • Max. cutting height: 4” (100mm)
  • Max. cutting depth: 13/16” (21mm)
  • Spindle diameter: 1-1/4″ (31.75mm)
  • Speed: 7000 RPM
  • Max. cutterhead diameter: 3-1/2” (90mm)
  • Motor: 4.1HP (3Kw)
• Table:
  • Area: 1125 x 685 mm
  • Elevation: 230mm
  • Power Table (Raise): 120w
• Dust Hood Outlet: 101.6mm (4″)
• Feed System:
  • Speed (Variable): 11-52 ft/min.
  • Motor: 1/2HP (0.375Kw)
• Machine Dimensions (LxWxH): 1485 x 1265 x 1216 mm (58.5” x 50” x 48”)
• Packing Dimensions (LxWxH): 1350 x 1140 x 1130 mm (53.5” x 45” x 44.5”)
• Net Weight: 635kgs (1400bs)
• Gross Weight: 730kgs (1610lbs)
