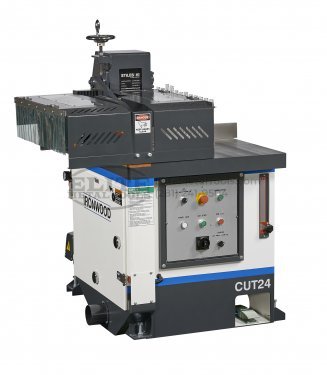

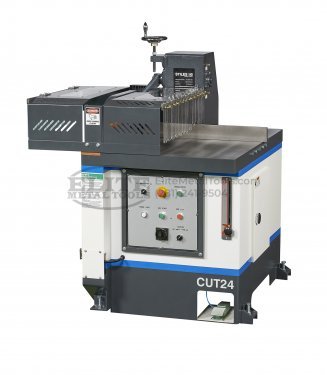

Ironwood 230V 24” Cut Off Saw with Right Hand Feed Direction CUT24L/R

Description

The Ironwood CUT24 Cut-off Saw offers operators a safe, reliable compact crosscutting solution. The table surface of the CUT24 Saw is precision ground to ensure absolute cutting accuracy while maintaining maximum stability during heavy cutting operations. The pneumatically operated machine highlights enhanced safety guards, fast cutting speeds, and the powerful motor torque required when working with multiple material types and dimensions.

Technical Advantages

• Cutting capacities offer maximum thickness up to 8” and up to 21” width
• Table surface is precision ground to assure cutting accuracy
• Adjustable cycle speeds offer cutting rates up to (40) strokes per minute
• Powerful, high torque 15 HP motor drive ensure high stability at fast cutting speeds
• Belt-tension adjustments and replacements are performed quick and easy
• Ironwood’s optional outfeed roller conveyor can be equipped with a graduated gauge bar and flip stops to ensure consistent cutting lengths

Efficiency Features

• Pneumatic operation of the cutting cycle is conveniently controlled via foot pedal
• Pressure clamp is easily adjusted to provide versatility when working with varying thicknesses of material
• Proper dust ports ensure positive air flow to prevent dust build-up within the machine cabinet
• Cycle speeds can be conveniently adjusted from outside the machine cabinet
• Adjustable saw stroke from front of machine for faster cycle times
• Machines are offered in right-handed feed direction

Safety

• Safety guard minimizes risk of operator’s hand accessing the cutting area

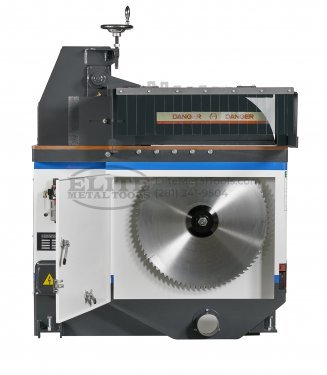

• Enhanced safety elements ensure saw blade is totally enclosed within the cabinet and covered by the pressure clamp when raised to perform cutting operation
• Limit switches ensure safe tool changes, allowing access doors to opened only when blade has stopped rotating
• Emergency Stop
• Conforms to UL electric standards
• Six Month electrical warranty
• One year mechanical warranty

Specifications

• Cutting capacity (thickness x width): 2” x 21”/ 4” x 19” / 6” x 15” / 8” x 8”
• Cycle operation: Pneumatic
• Material Feed Direction: RH
• Saw blade size: 20” / 22” / 24” (standard)
• Saw arbor Ø: 1”
• Saw blade speed: 2400 RPM
• Table size: 26” x 45 ¼”
• Working table height: 34 ¼”
• Motor: 15 HP IE3
• Dust port Ø / CFM: 2 x 4” / 900 CFM
• Air pressure: 80-90 PSI
• Air consumption: 12 CFM at 45 CPM
• Gross weight: 1,240 lbs.
• Packing Dimensions: 53 ½” x 35 ½” x 57”
• Electrical Connection*: 230 Volts | 3-phase | 60 Hz.

*460V power upgrades available upon request. Additional charges may apply.

Options

• Professional Installation
