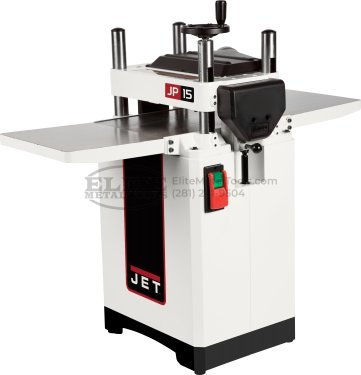

Jet 15″ JET Helical Cutterhead Planer, JWP-15BHH 722155
$3,739.00

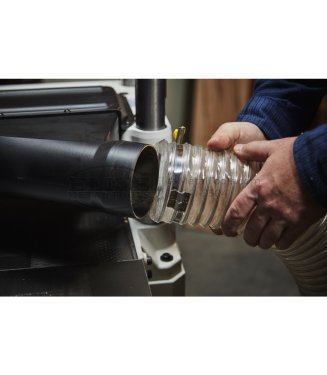

- 4″ Dust Port hooks up to dust management system and helps keep shop clean
- Dual infeed speed control for 16fpm or 20fpm maximizes cut efficiency
- Dust Port hooks up to dust management system and helps keep shop clean

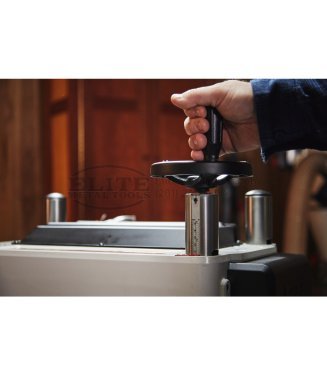

- Large hand wheel with positive gear drive easily moves the head to the desired board thickness
- Magnetic Switch with green safety light illuminates when powered
The New JET 15” helical head planer quickly and quietly transforms rough lumber into smooth boards. This machine means business with a powerful 3 HP motor with v-belt transmission combined with a Helical Cutterhead housing 48 staggered carbide quick change knives. The innovative Precision Air Strut System (PASS™) provides consistent upward pressure on the cutterhead, reducing the chance of board snipe. The conveniently located two-speed gear box allows for quick and easy feed rate adjustments while removing up to 1/8-inch material with each pass for a smooth finish. A heavy-duty precision ground cast-iron table and infeed/outfeed tables provides support for larger work pieces, making this planer a beautiful addition to the shop.
- 4″ Dust Port hooks up to dust management system and helps keep shop clean
- Dual infeed speed control for 16fpm or 20fpm maximizes cut efficiency
- Dust Port hooks up to dust management system and helps keep shop clean
- Large hand wheel with positive gear drive easily moves the head to the desired board thickness
- Magnetic Switch with green safety light illuminates when powered
- Maximum depth of cut 1/8″, 6″ cutting height and 15″ width capacity
| Specification | Value |
|---|---|
| Type of Cutterhead | Helical Head |
| Style (Type) | Floor standing Model |
| Number of Knives | 48 |
| Table Size (L x W) (In.) | 15 x 46.5 in. |
| Cutterhead Speed (RPM) | 5200 |
| Number of Speeds | 2 |
| Motor Power (HP) | 3 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Voltage (V.) | 230 |
| Motor Amps | 15 |
| Weight | 330.5000 |
| Width | 26.7700 |
| Height | 44.8800 |
| Length | 29.9200 |
Additional Information
| Manufacturer | JET |
|---|---|
| SKU | JT9-722155 |
| UPC | 731325762365 |
| Shipping Method | LTL Freight |
| Weight | 330.5 lb |
| Dimensions | 29.92 × 26.77 × 44.88 in |
| Country of Origin | Taiwan |
Product Documents
| Weight | 330.5 lbs |
|---|---|
| Dimensions | 29.92 × 26.77 × 44.88 in |
| Brand | JET |
| Country of Origin | Taiwan |
