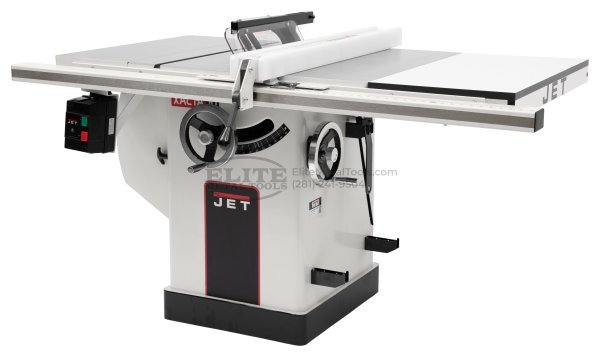

Jet Deluxe Xacta® SAW 5HP, 1Ph, 30″ RIP 708676PK
$4,325.00
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Hinged motor cover on cabinet gives quick access to the motor and belts
- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
- Left and right cast iron extension wings
Description

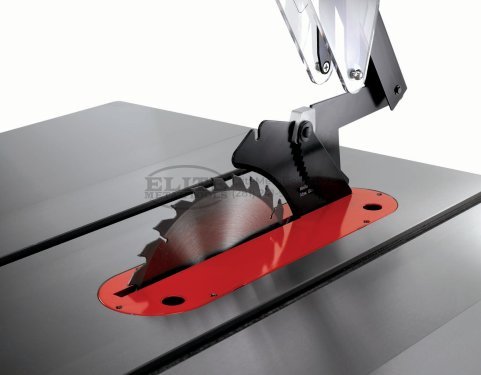

If you've ever wondered about what a table saw can really do, look no further. Introducing the JET® 10" Deluxe XACTA® saw. The quick release riving knife and integrated arbor lock keeps the operator safe and more efficient. The Deluxe XACTA® saw offers an upgraded Poly-V belt drive system for smooth operation and optimal power transfer, a fully shrouded blade for highly efficient dust collection. The 26" x 30" wings and deeper table gives you even more cast iron to work on. Also includes an on-board fence and miter gauge storage.
- Deluxe miter gauge with adjustable positive stops and large soft grip handles provides large crosscutting capacity and accurate miters
- Heavy-duty chrome plated handwheels contribute to smooth trunnion/arbor movement
- Hinged motor cover on cabinet gives quick access to the motor and belts

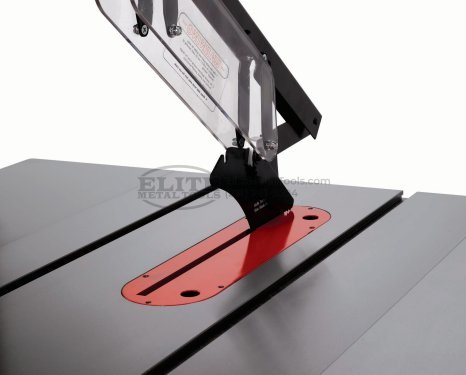

- Independent leaf safety guard protects operator from blade while cutting, even at 45° tilt
- Left and right cast iron extension wings
- Powder coated paint for a long-lasting, chip-resistant finish
- Precision ground high luster cast iron table tops with front edge bevel for hassle-free workpiece positioning
- Rail-mounted magnetic switch is easy to reach and provides overload protection
- Wide stance heavy-duty trunnion for stability and smooth blade positioning
| Specification | Value |
|---|---|
| Blade Diameter (In.) | 10 |
| Style (Type) | Cabinet |
| Maximum Depth of Cut at 45 Degrees (In.) | 2-1/8 |
| Maximum Diameter of Dado (In.) | 8 |
| Table in Front of Saw Blade at Maximum Depth of Cut (In.) | 10 |
| Table Size (L x W) (In.) | 29 x 20 |
| Maximum Rip Right of Blade (In.) | 30 |
| Maximum Width of Dado (In.) | 13/16 |
| Table Type | Cast Iron |
| Motor Power (HP) | 5 |
| Miter Gauge Type | Deluxe |
| Dust Collection Minimum CFM Required (CFM) | 350 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Motor Amps | 18 |
| Height | 38.0000 |
| Length | 65.0000 |
| Weight | 490.0000 |
| Width | 36.0000 |
Additional Information
| Manufacturer | JET |
|---|---|
| SKU | JT9-708676PK |
| UPC | 662755941061 |
| Shipping Method | LTL Freight |
| Weight | 490 lb |
| Dimensions | 65 × 36 × 38 in |
| Country of Origin | Taiwan |
Product Documents
Additional information
| Weight | 490 lbs |
|---|---|
| Dimensions | 65 × 36 × 38 in |
| Brand | JET |
| Country of Origin | Taiwan |
