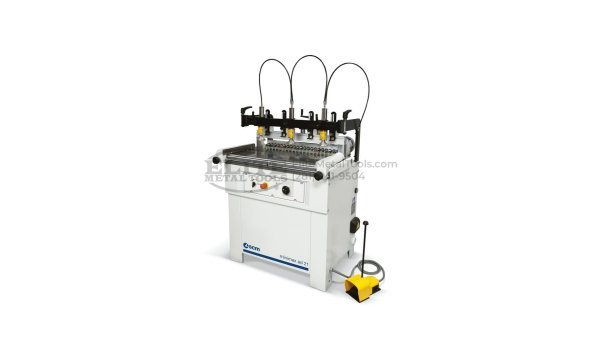

Minimax 230V Single Phase 21-Multi-Spindle Drilling Machine AD 21

Features

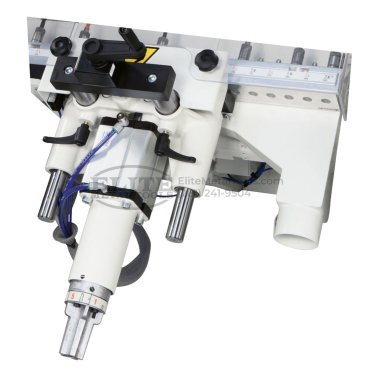

• Drilling head
  • Made from one single aluminum casting, this guarantees the absence of vibration while drilling
  • Runs on 2 cylindrical guides which assures stability and guarantees precision
  • Equipped with a mechanical revolver adjustment with 5 different drilling depth
  • Integrated dust extraction (2 outlets)
  • Pre-setting 0°/45°/90° angle
• Precise positioning: the mechanical gauge guarantees fast and precise positioning of the lateral fences
• For increased versatility, the quick-change chucks can be fitted with various types of bits for different operations, like boring hinge locations

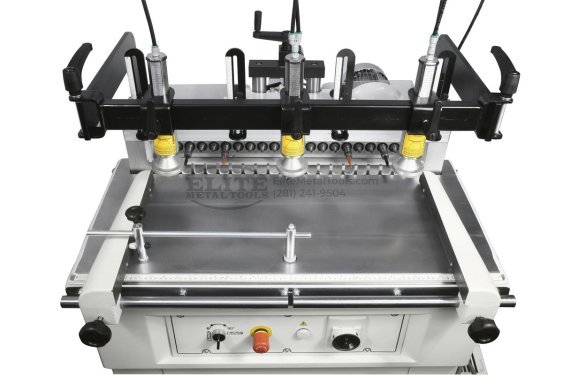

• Controls: all controls are ergonomically positioned on the front of the machine. This includes the switch which sets the boring head at 45° angle, allowing for an immediate changeover between operations. For perfect boring of large panels, the machine has a long 3000 mm fence with a scale and retractable stops. The fence is quickly mounted and removed easily

Standard Equipment

• Pneumatic adjustment of the horizontal and vertical drilling head position
• (2) pneumatic hold down clamps
• Height-adjustment of the drilling unit by means of hand wheel with mechanical readout
• Drilling depth adjustment from 0 to 60 mm by means of 5 positions revolver
• Automatic depth differential system for 0° / 90° coupling drilling (dowels)
• Rear stops for assembling bores maximum precision
• Lateral fence (length 9.8’) with retractable flip-stops for large panels
• Adjustable lateral stops complete with metrical reading bar
• Calibration compass for fast and precise positioning of lateral fences
• (21) dilling bit-holder bushes 10mm diameter
• Toolbox: wrenches, allen wrenches, user manual, spare parts catalog

Specifications

• Worktable dims: 35.62” x 14.62”
• Worktable height: 35.37”
• Drilling head motor: 3HP – 2.2kW
• Number of spindles: 21, with preset for quick-change adaptors
• Spindle center-to-center: 1.26”
• Max tool diameter: 1.56”
• Max drilling center-to-center: 25.19”
• Max height of horizontal drilling operation: 2.31”
• Spindle speed: 3360 rpm
• Min/max panel thickness: 0.37/3.31”
• Max panel width under the bridge: 32.75”
• Max drilling head stroke: 2.75”
• Exhaust outlets diameter: 3.12”
• Nominal extraction air consumption: 682 CFM
• Air exhaust speed: 66 ft/s
• Pneumatic operating pressure: 6 bar
• Electrical Requirements: 230V Single Phase 60Hz 10A
• Machine Dims: 42” x 40” x 43”
• Approx Weight: 686 lbs

Optional Add-Ons

• Three phase unit available (please contact a sales rep for more info)
• Hinges kit
• Additional clamp kit
• Fence for horizontal drilling at 45°

Additional Information

Product Documents

• Download Brochure
