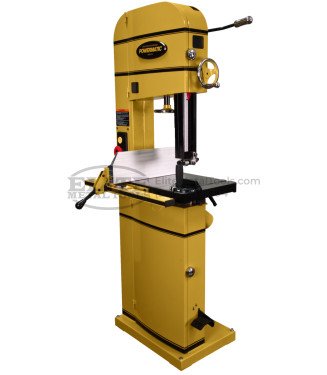

Powermatic PM1500 Bandsaw, 3HP 1PH 230V 1791500
$4,179.00
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned or released
- Fence features positive locking cam with pressure adjustment
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- High end blade guides with tool less adjustment provide stability, increasing cut accuracy
Description
The PM1500 packs many of the features traditionally only found on larger bandsaws, and brings them to a new, category-redefining, 15’’ size. As with every product Powermatic builds, the PM1500 pushes the limits of design, innovation, and durability. It truly is The Gold Standard.
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned
- Blade tension release with electrical interlock prevents the bandsaw from starting when the blade is detensioned or released
- Fence features positive locking cam with pressure adjustment
- Heavy duty upper wheel support and tracking mechanism for smooth operation
- High end blade guides with tool less adjustment provide stability, increasing cut accuracy
- Oversized side plate can be used in the horizontal or vertical position
- Solid cast iron upper and lower wheels create the momentum needed for heavy resaw
- Accu-Fence has complete adjustability for aligning to blade and squaring to table
| Specification | Value |
|---|---|
| Style (Type) | Floor |
| Cutting Capacity Height (In.) | 14 |
| Blade Length (In.) | 153 |
| Minimum Saw Blade Width (In.) | 1/8 |
| Blade Speed (SFPM) | 3100 |
| Table Size (L x W) (In.) | 21-1/2 x 16 |
| Motor Power (HP) | 3 |
| Table T-Slot (In.) | 3/4 |
| Table Height from Floor (In.) | 40 |
| Table Tilt (Deg.) | 45 Right / 10 Left |
| Dust Collection Minimum CFM Required (CFM) | 600 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Phase | 1 |
| Motor Voltage (V.) | 230 |
| Prewired Voltage (V.) | 230 |
| Recommended Circuit Size (Amps.) | 20 |
| Height | 83.5000 |
| Length | 29.7500 |
| Weight | 502.0000 |
| Width | 27.5000 |
Additional Information
| Manufacturer | Powermatic |
|---|---|
| SKU | PM9-1791500 |
| UPC | 731325224269 |
| Shipping Method | LTL Freight |
| Weight | 502 lb |
| Dimensions | 29.75 × 27.5 × 83.5 in |
| Country of Origin | Taiwan |
Product Documents
Additional information
| Weight | 502 lbs |
|---|---|
| Dimensions | 29.75 × 27.5 × 83.5 in |
| Brand | Powermatic |
| Country of Origin | Taiwan |
