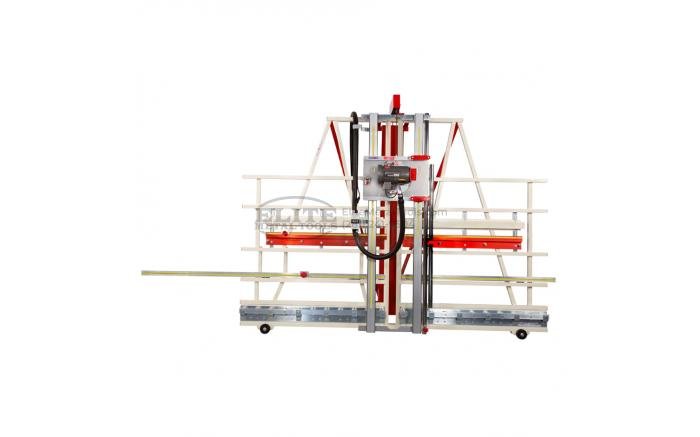

Safety Speed Single Phase 230V 64″ Vertical Panel Saw 7400

Description

Welcome to cutting at the highest production and accuracy level. If continuous sawing and tight tolerance is required for your operation, these units will deliver. Every component of this saw represents quality and performance. Showcasing 2 Hp, 1~ heavy duty induction motors, heavy extruded beams with precise dual-vee bearings, and the sturdiest frame on the market, these powerhouse machines will deliver cutting accuracies to 0.005” guaranteed.

Standard Equipment

• 2 Hp, 1~ continuous duty induction saw motor.
• Welded steel frame and integrated stand system.
• Dual V-track precision guide system.
• Adjustable vertical and hori- zontal rulers.
• Quick stop gauges (8′ left, 5′ right).
• Saw blade.
• Quick change from vertical to horizontal cutting.
• Floating pressure saw foot.
• Solid aluminum material rollers.
• Enclosed counterweight system.
• MID-WAY FENCE™.
• Dust collection ready.
• Hold down bar.
• Wheels.
• 3 year warranty.
• TUV certified to UL/CSA standards

Features

• Max. Crosscut:  64″/1625mm
• Max. Rip Cut:  Unlimited
• Max. Cut Thickness:  2-1/8″/55mm
• Cut Accuracy, Straight and Square:  .005″/.13mm
• Saw Blade Diameter:  8″/210mm
• Motor:  1PH 220V, 11amp
• Frame Length:  120″/3050mm
• Shipping Weight:  950lbs
• Shipping Dimensions:  124″ x 98″ x 48″

Optional Equipment

• Stop bar.
• Dust vacuum (1 HP or 2-1/4 HP).
• Digital readout for vertical cuts.
• Hight quality saw blades.
• Material scoring attachment.
• 2 HP, 1 phase motor.
• SAWGEAR or TigerStop auto length measuring.
