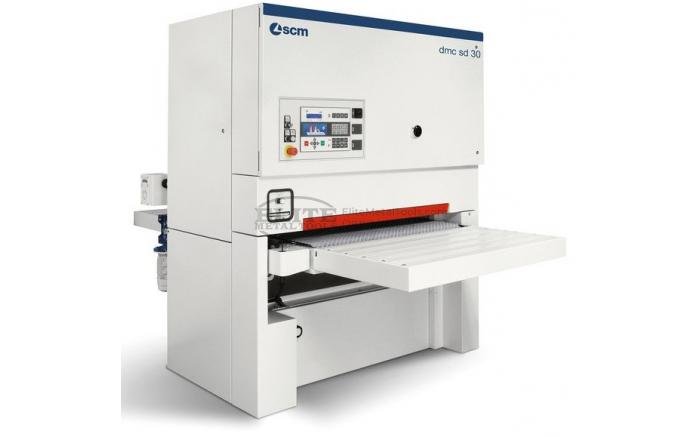

SCM Group 37” Automatic Wide Belt Sander with Steel Drum and Combi Head DMC SD 30 RCS 95

Description

The DMC SD 30 RCS 95 is ideal for the craftsmen and the small woodworking companies. Solid wood calibrating and sanding and veneered panel sanding operations (also with honey-comb support), and also for any other sanding requirements.

General Features

• Rubber coated pressing rollers before and after working unit
• 1 HP Inverter variable speed feed unit. Feed speeds set at 10 to 60 feet per minute
• Y-Delta two-stage reduced voltage starter on main motor

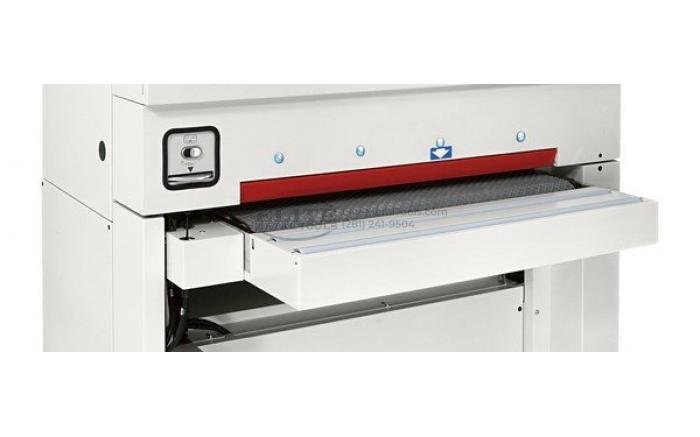

• 2 roller Infeed and outfeed table extensions
• Automatic Electronic Table Positioning Device

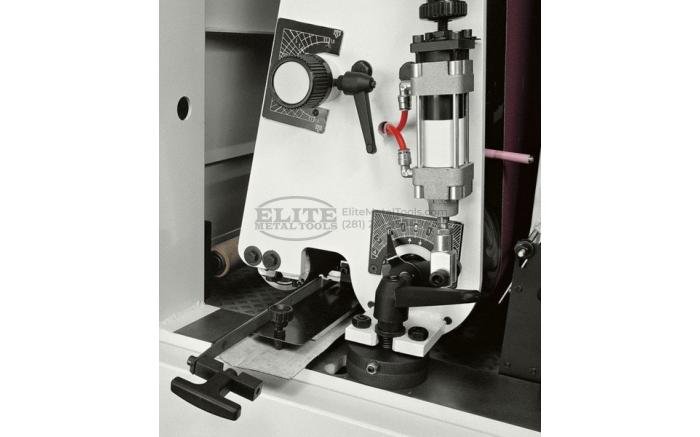

• Adjustable sanding drum and pad position for micro precision adjustment
• Electronic digital thickness readout of work table position
• Powered table lifting by means of four heavy duty motor and lifting columns double fastened at both top and bottom of the lifting columns to provide exceptional table stability
• Electronic tracking of abrasive belt
• Automatic feed mat tracking
• Pneumatic belt tensioning with center fulcrum to compensate for tapering of abrasive belt
• Front and rear emergency stop buttons
• Automatic emergency stop of machine for:
  • sanding belt breaking, tensioning, over tracking
  • opening of the access door to the operating groups
  • absence of compressed air
  • overload on main motors
• Amperage meter for main motors allows maximum utilization of available horsepower
• Main disconnect switch with the ability to be locked out by padlock
• In feed flexible steel hold down, and anti-kickback plate
• 50 shore, negative profile (waffle style) rubber feed mat
• LOGIC 50 K Electronic Programmer for timing/anti-dubbing of the pad

Specifications

• 1st Working Unit
  • Motor Hp: 30 HP (shared)
  • Motor Type: Single Speed
  • Abrasive Belt Speed: 18 mps
  • Drum Size: 120 mm (4.75”)
  • Drum Type: Steel
  • Abrasive Belt Length: 75”
• 2nd Working Head
  • Motor Hp: 30 HP (shared)
  • Motor Type: Single Speed
  • Abrasive Belt Speed: 18 mps
  • Drum Size: 120 mm (4.75”)
  • Drum Type: 45 Sh Rubber
  • Platen Size: 50 mm (2”)
  • Platens Included: Two
  • Abrasive Belt Length: 75”
• Other Specs
  • Working Width: 950 mm (37”)
  • Number of Heads Available: 2
  • Feed Motor: 1 HP Inverter
  • Feed Speed: 15 or 30 fpm
  • Maximum Work piece Thickness: 170 mm (6.69”)
  • Minimum Work piece Length: 12.5 inches
  • Abrasive Belt Size: 37” X 75”
  • Compressed Air Requirements: 6 Bar (88 PSI.)
  • Dust Outlets: 2 outlets @ 140 mm (5.5”)
  • Exhaust Requirements: 1,800 CFM
  • Power Requirements: 80 amps @ 230 Volts/3 phase
