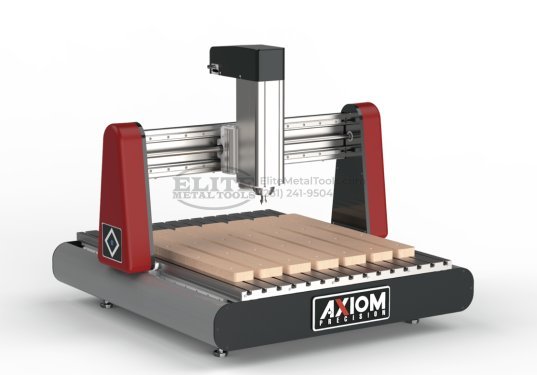

Axiom Precision 115V Single Phase Iconic 24″ x 24″ CNC Router Iconic4

Description

Rarely does the least expensive solution possess best-in-class features. That changes with the launch of Axiom’s new Iconic CNC machining center. The best technology and components have been selected to build what will surely be the new king of the entry-level CNC market.

The new Iconic CNC series includes three sizes, each with prismatic guides, ball screws, and the same powerful, yet easy to use, DSP pendant controller which we utilize on our larger machines. Axiom also provides a full complement of accessories ensuring that you will receive a package that’s specifically tailored to your CNC needs.

Targeted specifically at the first-time CNC user, the new Iconic lineup will be supported with a comprehensive manual and video library which are intended to dramatically shorten a new user’s learning curve.

Features

• Precision Linear Guideway: X/Y/Z
• Precision Ball Screw: X/Y/Z
• High Rigidity Aluminum Extrusion Working Table and Gantry Bridge
• Aluminum Billet Machined Gantry Supports
• All Welded Steel Frame Machine Base
• Tool Touch Off Included
• Controller
  • RichAuto B11 DSP
  • CNC Motion Control System
  • USB Port for Easy File Transfer
  • No PC Required

Specifications

• X-axis Travel: 23.81”
• Y-axis Travel: 24.01”
• Z-axis Travel: 3.937”
• Table Work Area: 28.4” x 37”
• Electro Spindle: 800W
• Collets (Included): ¼” & 1/8”
• Spindle Speed: 0-24,000 RPM
• Rapid Feed Rate: 150 IPM
• Ball Screw Diameter: 16mm
• Resolution: +/- .00589”
• 50-60Hz
• Max Gantry Clearance: 5 ½”
• Gantry Clearance Above Spoil Brds: 4 ½”
• Dimensions: 38”L x 35”W x 28”H
• Machine Weight: 176 lbs

Options

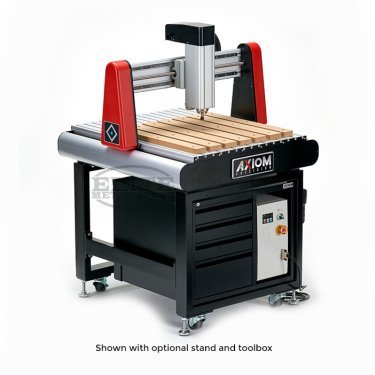

• Stand w/casters and leveling feet
• Toolbox
• Clamping Accessories
• Tooling Accessories
• Dust Collection Accessories
• LED Lighting
• Maintenance Kit
• Software
