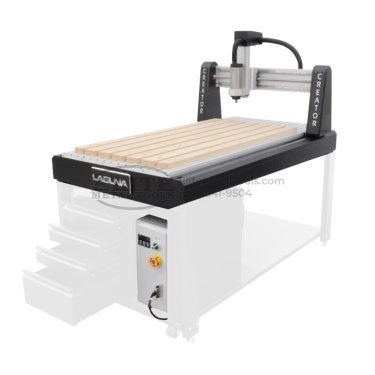

Laguna Tools Creator 220V Single Phase 24” x 48” Desktop CNC Router I-24

Description

Ultimate creativity and precision for the hobbyist, maker, small businesses, and schools.

The new Laguna Tools Creator – CNC technology made affordable and possible for everyone. Whether you are a demanding do-it-yourselfer, quality-conscious small-series manufacturer, training facility, or school. The Creator CNC machine removes the limits of manufacturing possibilities and gives you all of the creative freedom a CNC provides with precision and accuracy.

Features

• CSA Approved
• Controller
  • RichAuto B18-E DSP
  • CNC motion control system
  • USB port for easy file transfer (no PC required)
• Air cooled onboard cooling system
• Tool touch-off device
• Gantry supports: aluminum billet machined
• Gantry bridge: high rigidity aluminum extrusion
• Working table: high rigidity aluminum extrusion
• Prismatic Guides in all axes

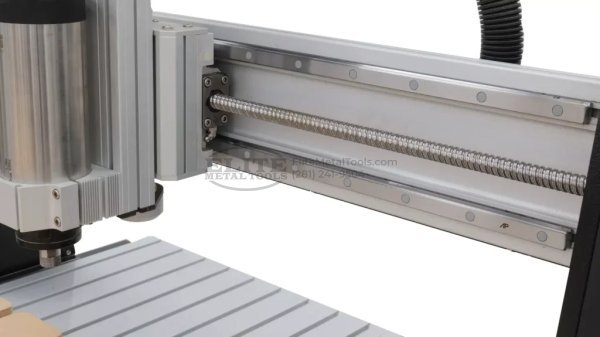

• Precision ball screws in all axes
• 4th Axis Ready
• Parts included:
  • Dust shoe
  • Hold down clamp set (4 total clamps)
  • 1/8” & ¼” collets
  • Collet wrenches
  • Integrated MDF spoil board

Specifications

• Table Size: 2’ x 4’
• X Axis Travel: 23.81”
• Y Axis Travel: 47.63”
• Z Axis Travel: 3.937”
• Table Work Area: 28.4” x 61”
• Spindle Configuration: ER16
• Electro Spindle: 2HP / 1.5kW
• Spindle Speed: 0-24,000 rpm
• Rapid Shuttle Rate: 150 IPM
• Precision Linear Guideway: X/Y/Z
• Precision Ball Screw: X/Y/Z
• Ball Screw Diameter: 16mm
• Positional Accuracy: +/- 0.00589”
• Max Gantry Clearance: 5½”
• Electrical Requirements: 220V Single Phase 50-60Hz 13A
• Machine Dims: 62” x 35” x 28”
• Approx Weight: 242 lbs

 Optional Add-Ons

• Stand
• Toolbox
• 8pc Bit Set
• 4th Axis Rotary Kit
• LED Lamp Kit
• Overhead Dust Collection Arm
• Vacuum Hold Down Kit
