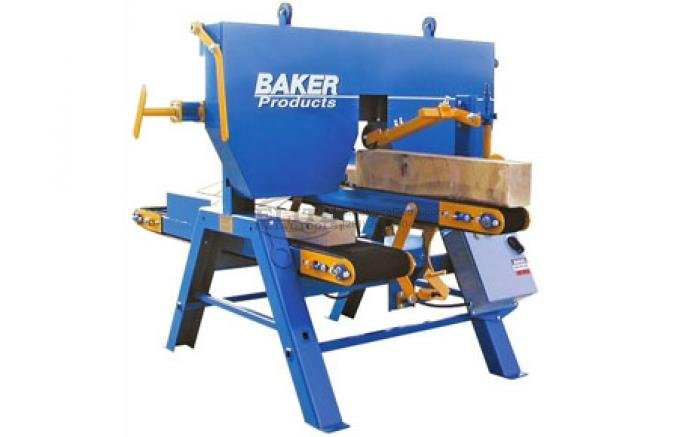

Baker Products 7” x 7” Single Head 20 HP Resaw Model A
$15,195.00
- Feed Speed: Fully variable, 0-120 fpm (0-36.5 mpm)
- Cutting Height: 1/4″-6″ (6 mm – 152mm)
- 20-HP electric motor
- Compact size (7’ square) fits into almost any size of operation
Description
Named for the shape of its frame, the Baker “A” Band Resaw is great for all of your resawing needs. You’ll cut at speeds not possible on many band resaws costing much more.
Accuracy, dependability, economy, simplicity, versatility, and low maintenance are combined into one affordable resaw. Resaw everything on it, or use it for short runs. Use it to cut boards or cants, or reclaim slabs. The Baker “A” fits in a 3/4 ton short-bed pick-up, so load it up and take it with you. Accuracy, dependability, economy, simplicity, versatility, and low maintenance are combined into one affordable resaw. That is why the Baker “A” is the most popular band resaw in the world.
*Shown with optimal return option above.
Features
- 20-HP electric motor standard
- 6” wide hydraulically-power driven conveyor with roughtop belting
- 28” diameter, CNC-machined, dynamically-balanced, solid, all-steel band wheels
- 13’-2”x1”x0.035” or 13’-2”x1¼”x0.035” hardback band blades
- Baker’s Exclusive Low-Profile Flat Plate Guide System with Rear Guide Wheel
- Hydraulic variable feed speed control, powered by main drive motor
- Spring blade tensioning
- Compact size (7’ square) fits into almost any size of operation
- Heavy-duty construction
- Simple to operate and maintain
- Extra-wide models available
Specifications
- Machine Dimensions
- Height: 68 in. (1.73 m)
- Length: 80 in. (2 m)
- Width: 84 in. (2.13 m)
- Machine Weight:
- Approx. 1,750 lbs. (794 kg)
- Capacities:
- Feed Speed: Fully variable, 0-120 fpm (0-36.5 mpm)
- Cutting Height: 1/4″-6″ (6 mm – 152mm)
- Material Length: Unlimited / Continuous Feed
- Material Sizes:
- 7 in. x 7 in. (178 mm x 178 mm) or 10 in. x 4 in. (254 mm x 102 mm) above the blade with conveyor set at 0
Options
- Infeed and Outfeed Turnarounds
- Powered Hold-Over Wheels
- Powered Hold-Down Wheels
- Simple Slide Return System
- 24-HP gasoline engine
- Rear non-powered hold-down
- Diagonal cut attachment
- 20-HP TEFC motor on
- Shingle belt
- Material Handling Conveyor
- Air Tensioning
Additional Information
| Manufacturer | Baker Products |
|---|---|
| SKU | Model A |
| Shipping Method | LTL Freight |
| Weight | 1,750 lb |
| Dimensions | 85 × 90 × 75 in |
| Country of Origin | United States of America |
| Warranty | 1 Year (Parts) |
Product Documents
| Weight | 1750 lbs |
|---|---|
| Dimensions | 85 × 90 × 75 in |
| Brand | Baker Products |
| Country of Origin | United States of America |
| Warranty | 1 Year (Parts) |
