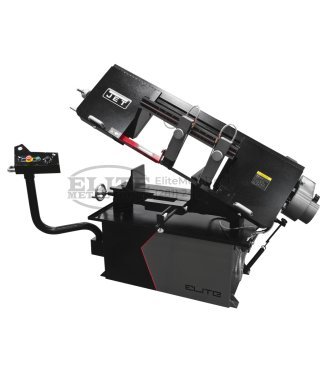

Jet 10 x 18 Variable Speed Bandsaw | EHB-1018V 891060
$8,395.00
- Adjustable Material Stop
- Automatic blade shut off switch stops the sawing process
- Built-in, self-propelled chip brush prevents chip build up in blade guides
- Integrated pressurized wash hose for easy machine cleaning
- Large handwheel with blade tensioning gauge accurately measures blade pressure
Description
A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
- Adjustable Material Stop
- Automatic blade shut off switch stops the sawing process
- Built-in, self-propelled chip brush prevents chip build up in blade guides
- Integrated pressurized wash hose for easy machine cleaning
- Large handwheel with blade tensioning gauge accurately measures blade pressure
- Quick positioning vise for clamping of materials
- The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions
- To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 in.
- Variable speed drive train allows operator to fine tune the blade speed fast and easily
| Specification | Value |
|---|---|
| Blade Speeds (SFPM) | 53 – 275 |
| Round at 45 Degrees (In.) | 9 |
| Round at 90 Degrees (In.) | 10 |
| Blade Length (In.) | 132-1/2 |
| Rectangle at 45 Degrees (In.) | 8-1/2 x 9 |
| Cutting Capacity (W x D) (In.) | 10 x 18 |
| Blade Speed (SFPM) | 53-257 |
| Rectangle at 90 Degrees (In.) | 18 x 3-1/2 |
| Vise Swivels (Deg.) | 45 |
| Weight (Lbs.) | 814 |
| Head Movement (Deg.) | 0 |
| Blade Wheel Diameter (In.) | 14 |
| Electrics | 2HP, 230V, 1Ph |
| Bed Height (In.) | 27 |
| Square at 45 Degrees (In.) | 8-1/2 x 8-1/2 |
| Square at 90 Degrees (In.) | 10 x 10 |
| Motor (HP) | 2 HP, 230V, 1Ph |
| Overall Dimensions (L x W x H) (In.) | 74 x 30 x 44 |
| Prewired Voltage (V.) | 230 |
| Drive | Variable Speed |
| Shipping Dimensions (L x W x H) (In.) | 74 x 30 x 44 |
| Net Weight (Lbs.) | 704 |
| Gross Weight (Lbs) | 814 |
| Height | 48.5000 |
| Length | 76.0000 |
| Width | 29.5000 |
| Weight | 705.0000 |
Additional Information
| Manufacturer | JET |
|---|---|
| SKU | JT9-891060 |
| UPC | 731325265576 |
| Shipping Method | LTL Freight |
| Weight | 705 lb |
| Dimensions | 76 × 29.5 × 48.5 in |
| Country of Origin | Taiwan |
Product Documents
Additional information
| Weight | 705 lbs |
|---|---|
| Dimensions | 76 × 29.5 × 48.5 in |
| Brand | JET |
| Country of Origin | Taiwan |
Reviews (0)
Shipping & Delivery
