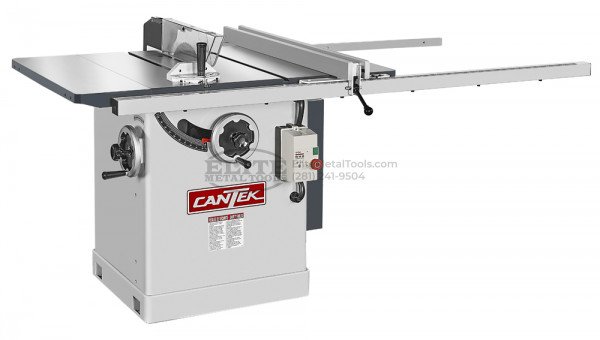

Cantek 10HP Three Phase 16” Tilt Arbor Table Saw TA16B
$6,510.00
- Max. depth of cut at 90°: 5 1/2″
- Max. depth of cut at 45°: 3 7/8″
- Table size: 48″x 38″
- Table height: 34 1/4″
Description
Features

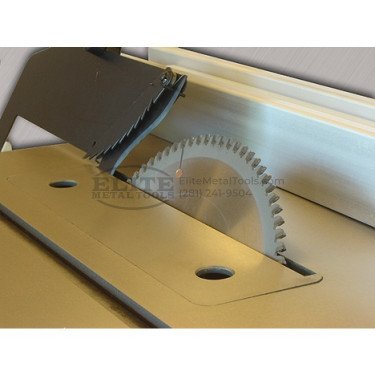

- 16” Sawblade can be lowered completely below the table surface
- Heavy-duty cast iron table is precision ground for accuracy
- Rugged machine frame construction provides maximum stability & reduced vibration
- Precision rip fence assembly locks on front rail for a precise parallel reference to the saw blade
- Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility
- Heavy-duty cast iron saw assembly

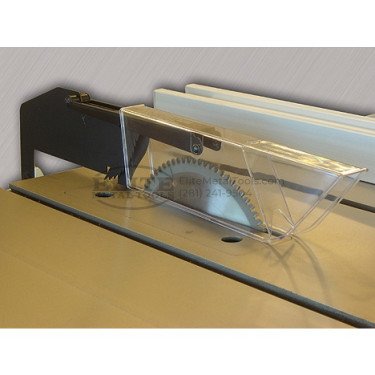

- Saw guard with safety anti-kickback
- Mitre gauge with two mitre slots in the table
- Two handwheels for blade tilting, raising/lowering with locking knobs
- CSA magnetic switch with overload protection
Specifications
- Diameter saw blade: 16″
- Max. depth of cut at 90°: 5 1/2″
- Max. depth of cut at 45°: 3 7/8″
- Arbor diameter: 1″
- Dado arbor diameter: 1”
- Arbor speed: 3750 RPM
- Table size: 48″x 38″
- Table height: 34 1/4″
- Max. rip to right of blade: 50″
- Motor: 10 HP
- Electrics: 230/3/60 = 28 Full Load Amps
- Net weight: 869 lbs
- Gross weight: 1034lbs
- Packing size: 37″x44″x42″h
- Saw Blade NOT included
Additional Information
| Manufacturer | Cantek |
|---|---|
| SKU | TA16B |
| Shipping Method | LTL Freight |
| Weight | 1,034 lb |
| Dimensions | 37 × 44 × 42 in |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
Product Documents
Additional information
| Weight | 1034 lbs |
|---|---|
| Dimensions | 37 × 44 × 42 in |
| Brand | Cantek |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
