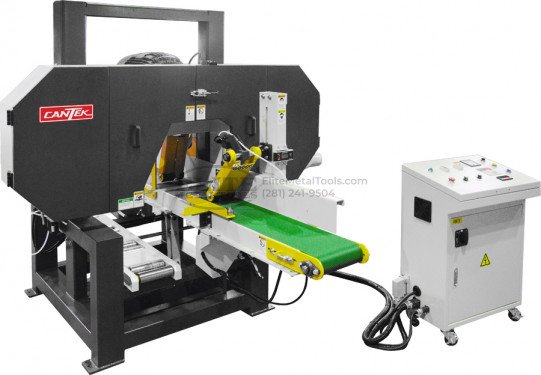

Cantek 12” Tilting Bed Horizontal Resaw HR300PBX

Features

• Heavy-duty tubular steel frame
• Solid steel saw wheels – precision machined and balanced
• Motorized thickness (blade height) adjustment with digital position readout
• Hydraulic blade tensioning
• Precision saw suide system – with moveable left guide to move as close as desired to the material being cut for improved cut accuracy
• Pneumatic pressurized top hold down rollers on feed conveyor
• Heavy-duty infeed guide-fence on conveyor right including holdover system
• Reinforced urethane conveyor belt for positive feeding and long life including
• Manually tilting feed belt for angle cutting from 0 – 45o
• Variable feed speed by VFD (frequency inverter)
• Motorized return conveyor belt allows material to be returned to the operator to be re-cut
• Air mist – blade cooling system
• Y Delta – low amperage starter on the saw motor
• Electrical components to UL/CSA standards – 460/3/60 electrics
• Smooth infeed system (limit switch & timer 1 to 3 seconds)

Specifications

• Max. workpiece size: 300mm x 300mm
• Distance from blade to conveyor: 4 – 250mm
• Conveyor belt size: 11.2” x 215” (285mm x 5470mm)
• Machine wheel dimensions: 28” Dia. x 2” Wide
• Main motor (Resaw wheels): 30 HP
• Conveyor motor: 3 HP
• Blade elevation motor: ¼ HP
• Variable feed speeds: 0~120 FPM (0~37 m/min)
• Dust hood diameter: 2 x 4”
• Saw blade size (Normal): 180” (L) x 2” (W)
• Feed belts – bed angle: 0 ~ 45°
• Voltage – Stock machine: 460/3/60 electrics
• Machine weight: 3960 lbs (1800 kgs)
• Shipping weight: 4400 lbs (2000 kgs)
• Shipping dimensions: 113” x 90” x 85” (2850 x 2270 x 2160mm)
