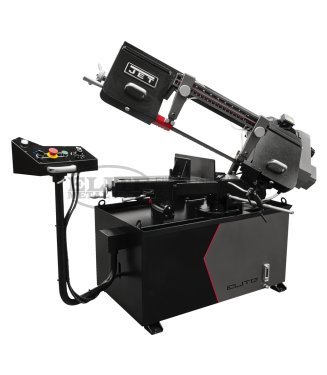

Jet 8 x 13 Variable Speed Mitering Bandsaw | EHB-8VSM 891020
$8,789.00
- Adjustable Material Stop
- Automatic blade shut off switch stops the sawing process
- Built-in, self-propelled chip brush prevents chip build up in blade guides
- Integrated pressurized wash hose for easy machine cleaning
- Large handwheel with blade tensioning gauge accurately measures blade pressure
Description
A new legacy of saws. Saws that need to demonstrate new kinds of flexibility are counted on to last longer and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed to fine tune the blade speed fast and easily. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.
- Adjustable Material Stop
- Automatic blade shut off switch stops the sawing process
- Built-in, self-propelled chip brush prevents chip build up in blade guides
- Integrated pressurized wash hose for easy machine cleaning
- Large handwheel with blade tensioning gauge accurately measures blade pressure
- Mitering allows for angle cuts up to 45° right
- Quick positioning vise for clamping of materials
- The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions

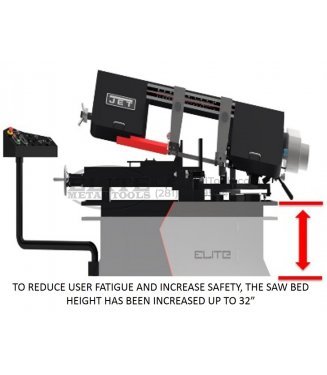

- To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 30 in.

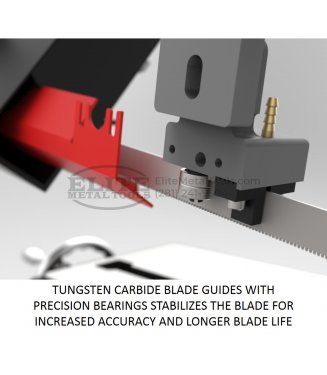

- Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
| Specification | Value |
|---|---|
| Blade Speeds (SFPM) | 82 – 310 |
| Round at 45 Degrees (In.) | 8 |
| Round at 90 Degrees (In.) | 8 |
| Blade Length (In.) | 114-1/2 |
| Rectangle at 45 Degrees (In.) | 8 x 8 or 2 x 9-1/2 |
| Rectangle at 90 Degrees (In.) | 13 x 5-1/4 / 13-1/4 x 2 |
| Blade Speed (SFPM) | 82-310 |
| Vise Swivels (Deg.) | 45 |
| Weight (Lbs.) | 924 |
| Head Movement (Deg.) | 45 |
| Blade Wheel Diameter (In.) | 11-5/8 |
| Amperage Draw @ 115V 1Ph | 23 |
| Electrics | 1/2HP, 115/230V/ 1Ph Prewired 115V |
| Bed Height (In.) | 30 |
| Amperage | 115V: 18A/230V: 9A |
| Square at 45 Degrees (In.) | 8 x 8 |
| Motor (HP) | 1-1/2 HP, 115/230V, 1Ph |
| Shipping Weight (Lbs.) | 792 |
| Overall Dimensions (L x W x H) (In.) | 62-1/2 x 23 x 48 |
| Prewired Voltage (V.) | 115 |
| Drive | Variable Speed |
| Net Weight (Lbs.) | 792 |
| Gross Weight (Lbs) | 924 |
| Height | 51.5000 |
| Length | 69.0000 |
| Width | 30.0000 |
| Weight | 880.0000 |
Additional Information
| Manufacturer | JET |
|---|---|
| SKU | JT9-891020 |
| UPC | 731325265552 |
| Shipping Method | LTL Freight |
| Weight | 880 lb |
| Dimensions | 69 × 30 × 51.5 in |
| Country of Origin | Taiwan |
Product Documents
Additional information
| Weight | 880 lbs |
|---|---|
| Dimensions | 69 × 30 × 51.5 in |
| Brand | JET |
| Country of Origin | Taiwan |
