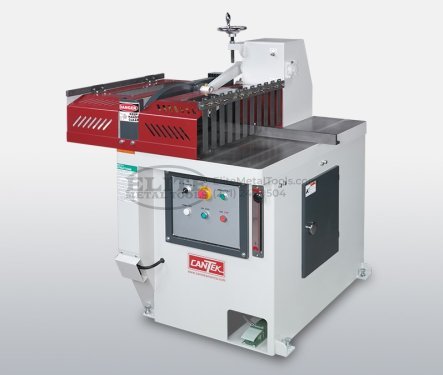

Cantek 15HP 460V 24” Pneumatic Cut-Off Saw with Foot Pedal Control (LH or RH) PCS24

Large capacity crosscutting solution.

The Cantek PCS24 24” pneumatic cut-off saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 15HP motor and adjustable cutting stroke ensure it can effortlessly cut though a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.

Why Cantek PCS24 24″ Pneumatic Cut-Off Saw?

• Large cutting capacity from 2”x21” up to 7”x 8”
• Adjustable cutting stroke to ensure optimum cutting speed and cut quality
• Reliable performance day in and day out
• Added safety features

Key Advantages

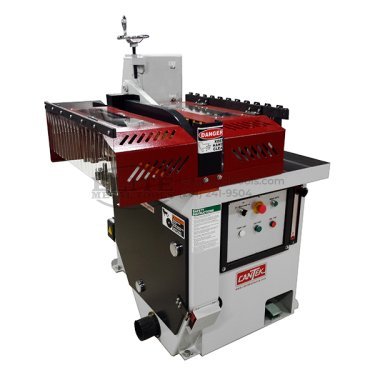

• Available in Right Hand & Left Hand configuration
• Cut off capacity (thickness x width): 2″ x 21″, 4″ x 19″, 6″ x 15″, 7″ x 8″
• Powerful 15HP main motor
• Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
• Fast cutting cycle with up to 40 strokes per minute
• Cast iron table surface is precision ground assuring high cutting accuracy.
• Material clamp is easily adjusted for workpiece thickness variation.
• CSA/UL magnetic switch

Safety Features

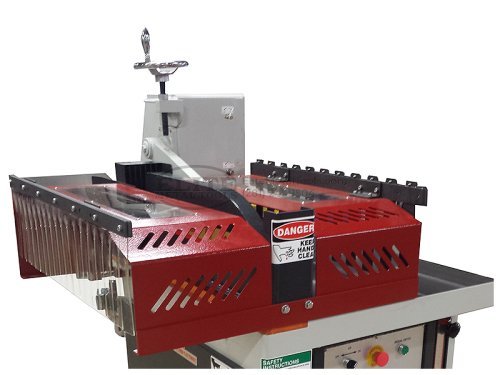

• Safety guard covers infeed and outfeed to maximize operator’s safety during cutting operations
• Infeed guard has adjustable fingers to minimize opening
• Door safety limit switches with extended security bolt
• Emergency stop button
• Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw

Specifications

• Cutting Capacity (Thickness x Width): 2″x21″, 4″x19″, 6″x15″, 7″x8″
• Cycle Speed: 40 strokes/min
• Cycle Operation: Air / mechanical
• Saw Blade Size: 24″ max. (20″ min.)
• Saw Arbor Diameter: 1″
• Saw Blade Speed: 2400 RPM
• Dust Exhaust Diameter: Ø4″ x 2
• Air Consumption: 27.5 CFM
• Motor: 15 HP
• Voltage: 460V
• Table Size: 45.3″ x 26″
• Net Weight: 1,058 lbs.
• Gross Weight: 1,433 lbs.
• Machine Dimensions (L x W x H): 40.2″ x 45″ x 55″
• Packing Dimensions (L x W x H): 53.5″ x 35.5″ x 57″

Options

• Extra Sawblade 610*80T*4.0*3.45*Ø25.4
• Non Ferrous cutting package
• Infeed and Outfeed Roller Conveyors
• Lumber Stops
• Dual Push Button Control
• Fix Stop
