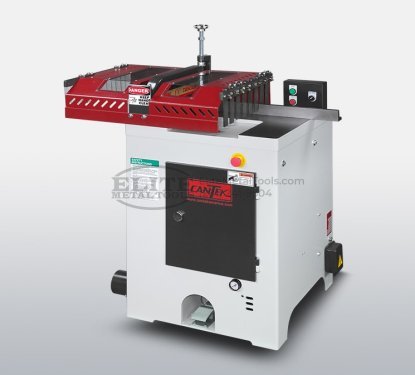

Cantek 10HP 460V 18” Pneumatic Cut-Off Saw with Foot Pedal Control (LH or RH) PCS18

Speed up your crosscutting operations.

The Cantek PCS18 18″ pneumatic cut-off saw is the ideal solution for increasing production on crosscut operations while maintaining optimum safety. Its powerful 10HP motor and adjustable cutting stroke ensure it can effortlessly cut through a wide range of materials and dimensions. A number of features are included to ensure safe operation such as the infeed/outfeed safety guard, microswitches on all access doors, and a security bolt on the saw access door. Available in either left-hand or right-hand operation depending on your ideal production flow.

Why Cantek PCS18 18″ Pneumatic Cut-Off Saw?

• Large cutting capacity of 2”x12” up to 4”x10”
• Adjustable cutting stroke to ensure optimum cutting speed and cut quality
• Reliable performance day in and day out
• Added safety features

Key Features

• Available in Right Hand & Left Hand configuration
• Cut off capacity (thickness x width): 2″ x 12″, 3″ x 11″, 4″ x 10″
• Powerful 10HP main motor
• Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
• Fast cutting cycle with up to 45 strokes per minute
• Cast iron table surface is precision ground assuring high cutting accuracy.
• Material clamp is easily adjusted for workpiece thickness variation.
• CSA/UL magnetic switch

Safety Features

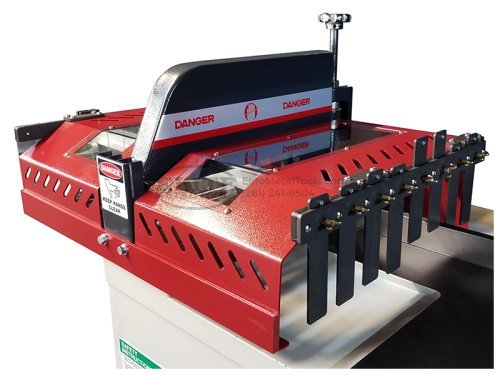

• Safety guard covers infeed and outfeed to maximize operator’s safety during cutting operations
• Infeed guard has adjustable fingers to minimize opening
• Door safety limit switches with extended security bolt

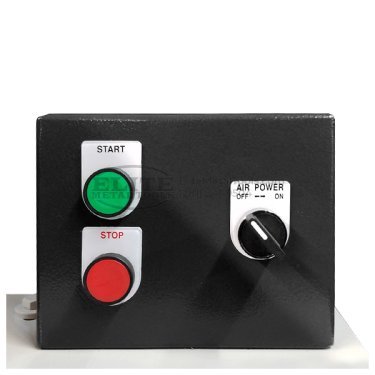

• Emergency stop button
• Optional dual push button control which requires both buttons to be pushed simultaneously to cycle the saw

Specifications

• Cutting Capacity (Thickness x Width): 2″ x 12″, 3″ x 11″, 4″ x 10″
• Cycle Speed: 45 strokes/min
• Cycle Operation: Air
• Saw Blade Size (Optional): 18″
• Saw Arbor Diameter: 1″
• Saw Blade Speed: 3600 RPM
• Dust Exhaust Diameter: Ø4″
• Air: 9.8 CFM / 70-85 PSI
• Motor: 10 HP
• Voltage: 460V
• Table Size: 26” x 27.5”
• Net Weight: 770 lbs.
• Gross Weight: 902 lbs.
• Machine Dimensions (L x W x H): 42” x 27” x 48”
• Packing Dimensions (L x W x H): 37” x 33.5” x 53.2”

Options

• Extra Sawblade 455*120T*3.4*2.75*Ø25.4
• 3M Infeed & 3M Outfeed (Incl. 1 Fixed Stopper & 2 Flip Stoppers)
• 10 Degree Conveyor Tilt Base
• Dual Push Safety Control
