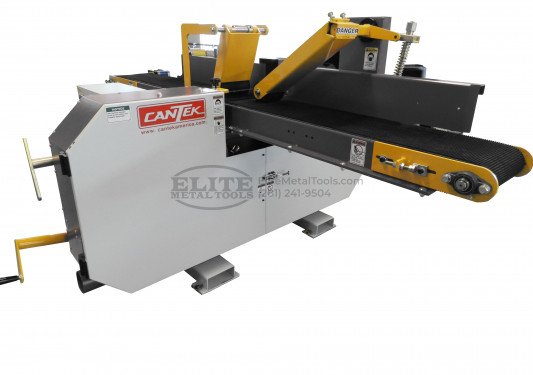

Cantek 20 HP Single Head Economical Horizontal Resaw HR12E

Features

• Convenient Thickness Adjustment – The hydraulic system consists of high-quality hydraulic parts, featuring long service life and low heat generation.
• Blade Tensioning – Manual elevation of saw wheels is transmitted through a worm gear mechanism for easy operation.
• Blade Guide Assembly – All electrical controls of the machine are on one control panel for convenience.
• Blade Spray Mist Cooling System – Is driven by motor, providing fast and convenient adjustment for thickness of cut.
• Heavy Duty Steel Saw Wheels – The hydraulic circuit is equipped with a three-way ball valve, which helps eliminate high temperature problems on hydraulic systems.
• Feed Table Assembly – The conveyor belt is driven by a high-performance hydraulic motor. The adjustable feed speed feature allows flexibility to saw hard or soft wood.

Other Highlights

• Single head horizontal configuration
• Manual saw wheel elevation
• Both elevation screws are linked by a shaft to ensure synchronized movement and precisely level adjustment.
• Variable feed speed by powerful hydraulic drive system
• Manual saw blade tension adjustment by handle

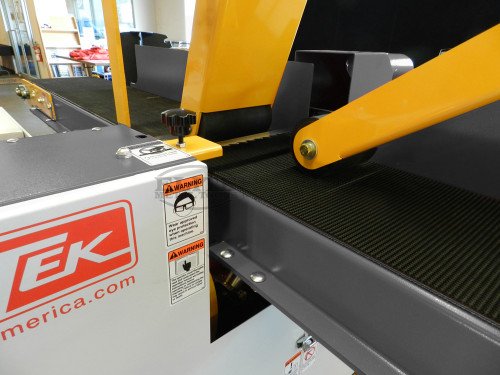

• (2) spring loaded hold down rollers ensure material is held firmly on the conveyor belt during material resawing
• Heavy duty solid steel saw wheels are precision ground and dynamically balanced
• Powerful 20HP saw wheel motor

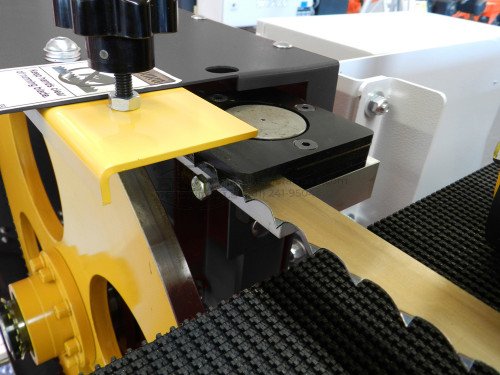

• Adjustable guide system

Specifications

• Max. Input Board Size: 11.8” (Wide) x 9.8” (Thick) (300 x 250mm)
• Distance from blade to conveyor table: 0.15” – 4.92” (4 – 125mm)
• Conveyor belt size: 11.2” x 215.3” (285 x 5470mm)
• Diameter of saw wheel: 28” Dia. x 1” Wide
• Variable Feed Speed: 16 – 82 FPM (5 – 25 M/min)
• Saw Blade Size: 168” (L) x 1” (4625 x 27mm)
• Main Motor: 20 HP
• Feed motor: 2 HP
• Electrics: 230/3/60 = 60.8 Full Load Amps – Stock Machine
• Dust Hood: 4” x 4 pcs.
• Machine with Conveyor weight: 1120 kgs. (2464 lbs.)
• Packaging dimensions:
• Frame: 86” x 45” x 45” (2180 x 1140 x 1140mm) (900 kgs (1980 lbs.)
• Conveyor: 113” x 22” x 28” (2870 x 560 x 700mm)

Weigh with conveyor: 2264
