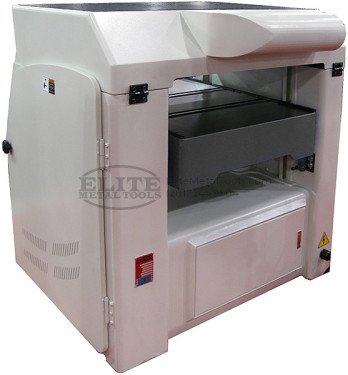

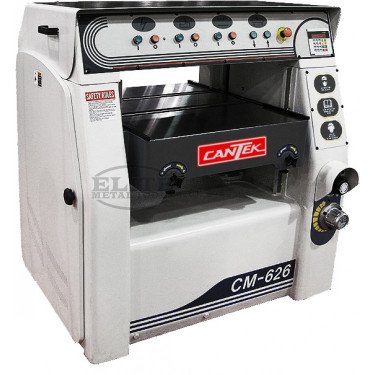

Cantek 20 HP Three Phase 26” Heavy Duty Spiral Insert Head Planer CM626

Features

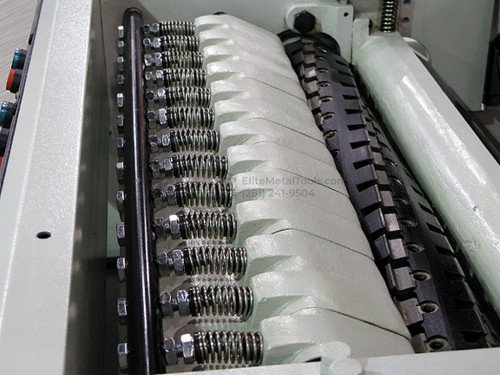

• Spiral Insert Cutterhead – Spiral insert knife cutterhead with (6) rows of 30 x 12 x 1.5mm knives. Knives are two sided & have bevels on each corner producing a smooth finish. Wider knife means less knives/head resulting in reduced changeover time.
• Powerful Chain Drive Assembly – Heavy duty chain drive system to top feed works and driven bed rolls produce a powerful and smooth feeding system
• Precise Bed Roll Adjustment – Convenient bed roll adjustment on the front of the feed table allows for precise setting of the powered bed rolls for the best possible feeding results
• Digital Thickness Control – Equipped with a digital thickness control which can be programmed in Inch of Metric. To 3-decimal places in inches and 2-decimal places in Millimeters.
• Heavy Duty Pressure Section – Sectional chip breakers and section infeed pressure roller for positive feeding of material. Rubber covered outfeed roller. Anti-kickback fingers are installed for added safety
• Variable Feed Speed – Variable feed speed control located conveniently on the operator side of the machine

Other Highlights

• Spiral cutterhead with 6 rows insert knives provides high removal, superior finish and low noise
• Solid cast iron construction
• Variable feed speed
• Drive top and bottom feed rolls
• Front & rear bed rollers easily adjusted from the front of the machine
• Power table elevation by digital thickness control
• Section infeed roll and section chipbreaker
• Anti-kickback fingers for added safety
• Dual heavy jack screws with slides for accuracy & rigidity
• Dust exhaust outlet (6”)
• Sound dampening machine cover
• All operations on convenient control panel

Specifications

• Maximum planing width: 26″
• Maximum planing thickness: 11 ¾”
• Maximum depth of cut: .31″ (8mm)
• Minimum part length: 10.5″
• Table area: 35″ x 27″
• Feed speeds variable: 16 – 70 FPM
• Main motor: 20 HP
• Feed motor: 1 HP
• Table motor: 1/2 HP
• Knives: 30 x 12 x 1.5 qty 100
• Cutterhead: 4 ¾” dia. x 5000 rpm
• Top feed rollers: 3″ dia.
• Dust hood outlet: 6″ dia.
• Electrics: 230 or 460 or 575/3/60
• Net weight: 2200 lbs.
