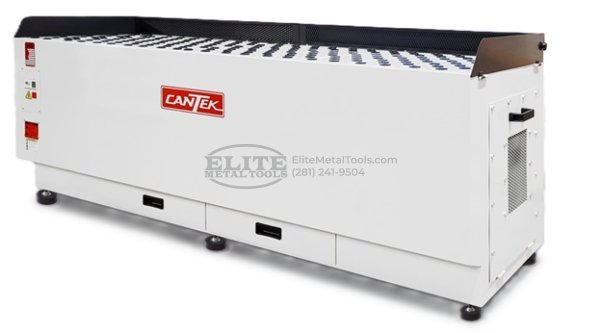

Cantek 230V Single Phase 1950 CFM Downdraft Table FT2200

Description

The Cantek FT2200 Downdraft Table is ergonomic, energy efficient, and easy to maintain. Rubber anti-slip rings and removable location stops ensure the material does not move during the sanding process, and the dual filters safely trap sawdust particles. Rear suction boards and side deflector plates are removable for sanding larger surface materials. The FT2200 is perfect for light to medium duty woodworking applications such as sanding and finishing.

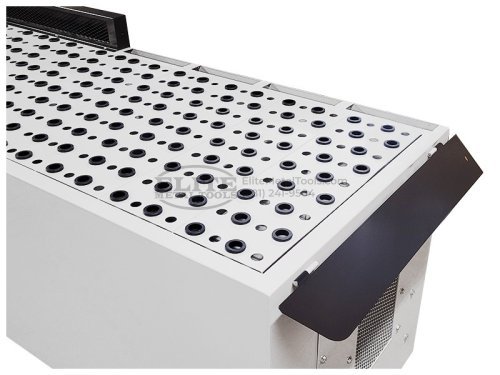

Removable rear suction boards and side deflectors

Comes equipped with rear suction boards to aid in collecting of airborne particles. The suction boards and side deflector plates can be removed when sanding larger surface materials

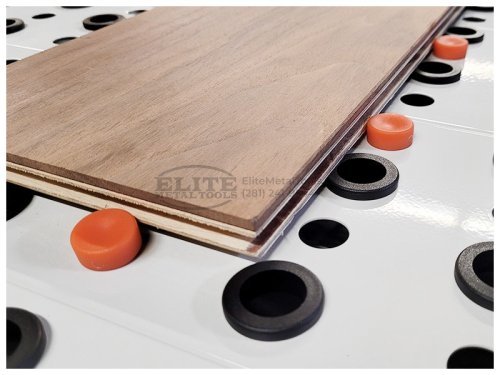

Material location stops

Equipped with removable stops which can be used to reference parts when sanding to ensure the piece does not move. Additionally, the material sits on rubber anti-slip rings

Removable suction boards

The table suction plates can be easily removed to allow for full access to clean and change the air filters

Set of 4 filters

Outfitted with (4) air filters which can be easily removed and cleaned or replaced

Drawers

Comes with (2) removable drawers which collect dust. The drawer can be quickly removed and dumped as required

Motors

Comes with (2) 1HP motors each generating 1950 CFM

Controls

Equipped with magnetic switch

Why Cantek FT2200 Downdraft Table?

• 84”x24” table surface
• Perfect solution for reducing airborne wood dust and eliminating time consuming cleanups
• Two powerful 1HP motors each generating 1950 CFM
• Side deflector plates can be latched in place or folded down for sanding larger surface materials
• Dust is collected in two drawers that can be easily removed at the front of the machine
• Designed for industrial duty applications

Features

• For maintaining a clean and dust-free shop environment
• Virtually eliminating wood dust from the air
• Two operators can stand side-by-side while they sand workpieces on the worktable
• Heavy duty cabinet design and sturdy components provide a strong, durable work surface and investment
• Draws the contaminants down and away from the worker’s breathing zone
• Special deflectors create an even airflow across the table surface
• Simple to use; plug and play design

Specifications

• Air flow: 1950 CFM x 2
• Table load capacity: 660 lbs
• Cartridges: 2
• Filter: 5 micron / 4pcs 16”x2”x1”
• Table size: 84” x 24”
• Sound: 82 dB
• Table height: 29½” to 32”
• Main motor: 2 x 1HP
• Electrical Requirements: 230V Single Phase 60Hz 8Amp
• Machine Dims: 84” x 29” x 36”
• Approx Weight: 375 lbs

Additional Information

Product Documents

• Download Brochure
