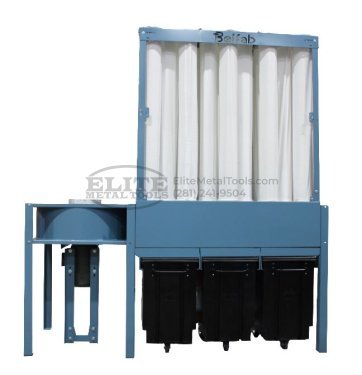

Belfab 15HP 3 x 105 Gal. Disposal Capacity Dust Collector with 460 Magnetic Starter BEL 150 XL

Description

The BEL Series is an industrial small capacity dust collector system generating up to 5000CFM, available in single or three phases electrical connection. This dust collector is designed to collect dust particles ranging from coarse to mixed sizes, generated by wood machines operating in intermittent or continuous fashions and producing moderate to heavy dust loads. The BEL Series is generally recommended for applications involving one or two machines in a small shop environment or in larger facilities where there is a need for an industrial “stand alone solution”.

• Compact Design
  • The BEL series is available in 9 feet high or 11 feet high compact design which makes it ideal for applications where height requirements are a concern.
• High Performance Blower
  • The BEL series integrates a high performance and super quiet 1800 RPM fan. The Hummer blower develops an airflow capacity of 5000CFM and holds a 10HP or 15HP motor. This blower is perfect for applications that require a low sound level (under 81 dB). (Up to 5000 CFM for indoor installation. Above 5000 CFM an outdoor set up is required (NFPA 664).)

Features

• Low maintenance direct drive centrifugal fan
• Premium TEFC motor (CSAus approved)
• High efficiency beane bag filter bags with efficiency level of 99.99% between 3.8 and 4.6 microns (meets standard PM 2.5)
• The unit is configured for push application only
• Disposable plastic bags with quick clamps
• Compact configuration offering a small footprint

Specifications

• Capacity (CFM): 5000 CFM @ 10.5” WC
• Blower Motor (HP): 15 HP
• Filtration Surface (sq.ft): 479.03
• Sound Pressure (dB): 81
• Inlet Diameter: 14”
• Disposal Capacity (gallons): 3 x 105
• Disposable Bags Included: 30
• Module Weight: 1,400 lbs.
• Dimensions (L x W x H): 118” x 54” x 130”

Options

• Dust Disposal: Disposable Bags (Standard), Steel Drums, or Plastic Tilt Trucks
