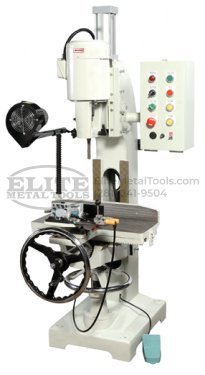

Cantek 2HP Pneumatic Hollow Chisel Mortiser PCM120

Features

• Power stroke of head permits easy, fast, and accurate successive cuts.
• Separate fan blower to keep work clean and free from dust and chips.
• Manual adjustable table height and lateral position
• Heavy duty cast iron construction.
• Convenient centralized control panel
• Foot pedal actuated cycle.
• Pneumatic workpiece clamping by lever

Specifications

• Chisel Range: 1/4″-3/4″
• Motor: 2HP
• Spindle Speed: 3400 RPM
• Table: 16.75″ x 21.25″
• Table Tilts: 30 degrees
• Air Pressure: 8KG
• Clamping Cylinder: 2.5” (63mm)
• Head Traveling Cylinder: 3.15” (80mm)
• Table Cross Travel: 5”
• Table Longitudinal Travel: 18”
• Table Vertical Travel: 12”
• Max. Stock Width: 12”
• Max. Mortising Depth: 4”
• Machine Weight: 572 lbs.
• Shipping Weight: 726 lbs.
• Shipping Dimension: 35” x 38” x 70” (880 x 960 x 1780mm)
