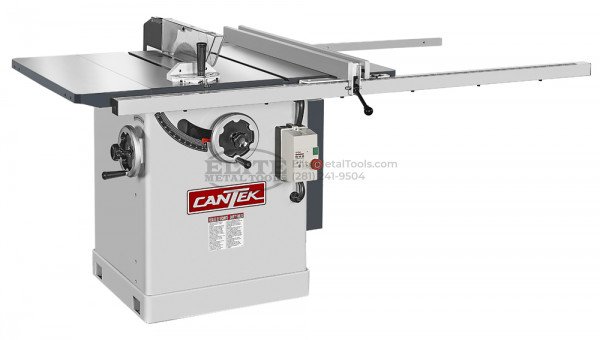

Cantek 3 HP Single Phase 10” Tilt Arbor Table Saw TA10
$3,195.00
- Table size: 36″x27″
- Max. rip to right of blade: 50″
- Max. depth of cut at 90°: 3″
- Max. depth of cut at 45°: 2″
Description
Features
- Heavy-duty cast iron table is precision ground for accuracy
- Rugged machine frame construction provides maximum stability & reduced vibration
- Precision rip fence assembly locks on front rail for a precise parallel reference to the saw blade
- Dual Inch/Metric scale guide rail on rip fence with magnifying glass for easy visibility
- Heavy-duty cast iron saw assembly

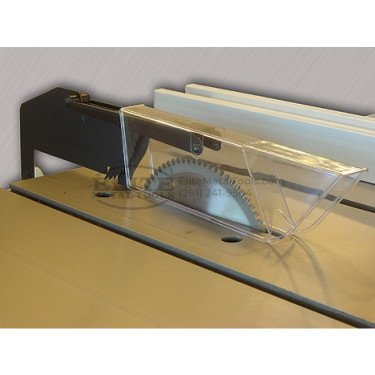

- Saw guard with safety anti-kickback
- Mitre gauge with 2 mitre slots in table

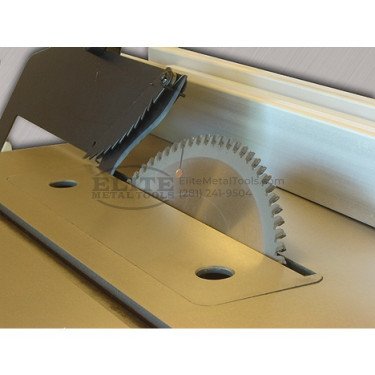

- Two handwheels for blade tilting, raising/lowering with locking knobs
- CSA magnetic switch with overload protection
Specifications
- Saw Blade Diameter: 10″
- Max. depth of cut at 90°: 3″
- Max. depth of cut at 45°: 2″
- Arbor diameter: 5/8″
- Dado arbor diameter: 5/8”
- Arbor speed: 4200 RPM
- Table size: 36″x27″
- Table height: 34 1/4″
- Max. rip to right of blade: 50″
- Motor: 3 HP – 1 PH
- Net weight: 407lb
- Gross weight: 497lb
- Packing size: 29″x36″x42″h
*Saw blade must be purchased separately
Additional Information
| Manufacturer | Cantek |
|---|---|
| SKU | TA10 |
| Shipping Method | LTL Freight |
| Weight | 495 lb |
| Dimensions | 26 × 36 × 42 in |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
Product Documents
Additional information
| Weight | 495 lbs |
|---|---|
| Dimensions | 26 × 36 × 42 in |
| Brand | Cantek |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
