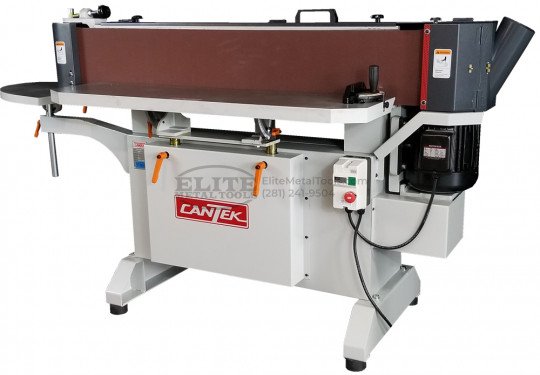

Cantek 9” x 138” Oscillating Edge Sander PW-120E

Features

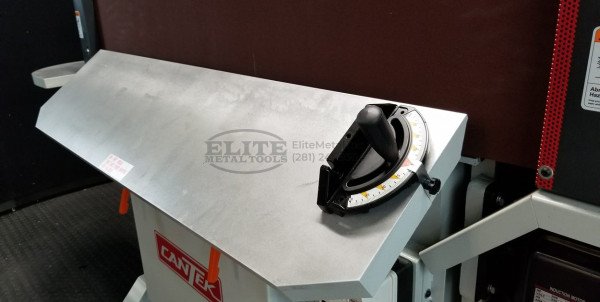

• Tilting main table with a 0° to 45° ruler.
• Tilting corner table, with adjustable height, for curved work piece sanding.
• 120° miter gauge for precise sanding.
• Two (2) parallel shafts mounted on a bushing system assuring a smooth and easy height table adjustment.
• Both rollers are rubber coated which give the ability of the small roller to do a smooth finish on curved pieces. Also, it gives to the large drum a better traction so the belt doesn’t slip.

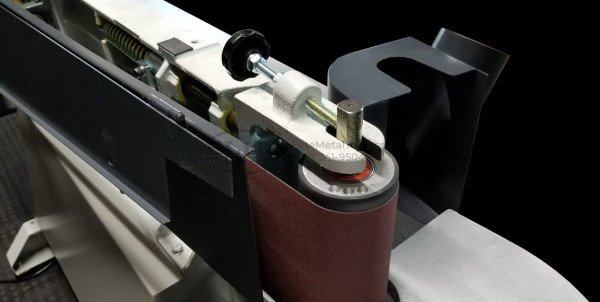

• Fast and easy belt replacement and belt oscillation adjustment.
• Door that gives you accessibility to sand long timbers.
• Standard magnetic control including overload protection and emergency stop.
• Two (2) 4’’ dust hood

Specifications

• Working Capacity (LxH) 47” x 8” (1200mm x 200mm)
• Belt Size (LxH) 138 ½” x 9”
• Sanding Belt Speed 1080 m/min (3544 FPM)
• Motor 3HP: 230-volt 3 phase
• Machine Dimensions (LxWxH) 82.7” x 24.4” x 40.2” (2100 x 620 x 1020mm)
• Shipping Dimensions (LxWxH) 86.6” x 28.4” x 45.3” (2200 x 720 x 1150mm)
• Net Weight 682 Lbs. (310 kgs.)
• Shipping Weight 792 Lbs. (360 kgs.)
