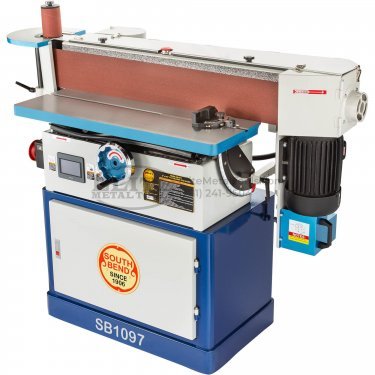

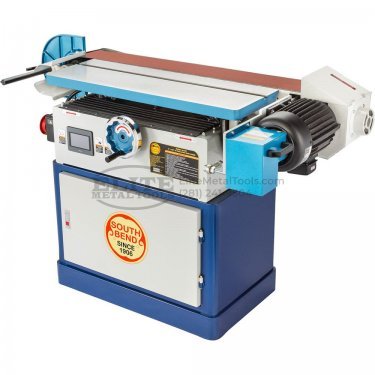

South Bend 6” x 108” Variable-Speed Oscillating Edge Sander SB1097
$4,599.00
- Motor: 3 HP, 220V, 3-phase, 9.5A
- Sanding belt size: 6″ x 108″
- Sanding head tilt: 90°–180°
- Main table size: 12″ x 35-1/2″ x 1-1/2″ thick
Description
Industrial strength plus ultimate convenience right at your fingertips—that was the approach to designing the SB1097 world-class edge sander with auxiliary spindle sanding table. The 3 HP motor and digital control for variable speed will take your edge and contour sanding to a whole new level of power and precision. The sanding head tilts from 0–90° allowing you to edge sand at any angle you need on the heaviest of workpieces with full support of the large precision-ground cast-iron table.

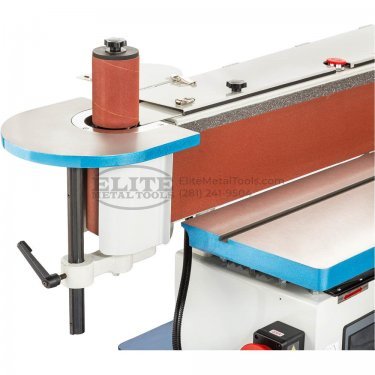

The table raises and lowers via handwheel, making table height adjustments easy and fast, even with a workpiece mounted to it. And you get two high-quality industrial machines in one, with the addition of an integrated oscillating spindle sander with 1-1/2″, 2″, and 3″ interchangeable drums and auxiliary table. With digitally controlled variable speed and heavy-duty features of this versatile machine, The SB1097 will answer all of your busy shop’s edge and contour sanding needs.
Features
- Sanding surfaces tilt vertical and horizontal
- T-slot table and miter gauge
- Quick-release belt lever
- Graphite-coated platen
- Oscillating sanding surfaces
- Sanding belt oscillates at 52 cycles per minute
- Includes 3 sanding drums: 1-1/2″ x 4-1/2″, 2″ x 4-1/2″, and 3″ x 4-1/2″
- Platen tilts 0 to 90°
- Variable-speed motor with touch screen controls
- US based customer service and technical support
Specifications
- Motor: 3 HP, 220V, 3-phase, 9.5A
- Sanding belt size: 6″ x 108″
- Sanding belt speed: Variable, 600–6000 FPM
- Oscillations: 1/4″
- Platen size & type: 6-3/4″ x 39-3/4″, graphite coated
- Sanding head tilt: 90°–180°
- Main table size: 12″ x 35-1/2″ x 1-1/2″ thick
- Main table vertical travel: 8″
- Auxiliary table size: 10″ x 11-1/2″ x 3/4″ thick
- Auxiliary table vertical travel: 10″
- Number of dust ports: 2
- Dust port size: 4″
- Footprint: 32″ x 19-1/2″
- Overall dimensions: 60″ W x 28″ D x 43″ H
- Approximate shipping weight: 597 lbs.
Additional Information
| Manufacturer | South Bend |
|---|---|
| SKU | SB1097 |
| UPC | 690550341946 |
| Shipping Method | LTL Freight |
| Weight | 597 lb |
| Dimensions | 58 × 30 × 44 in |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
Product Documents
| Weight | 597 lbs |
|---|---|
| Dimensions | 58 × 30 × 44 in |
| Brand | South Bend |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
