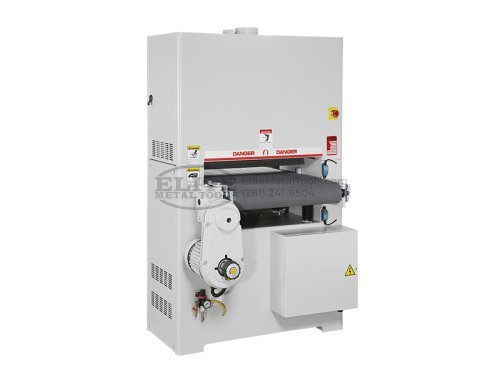

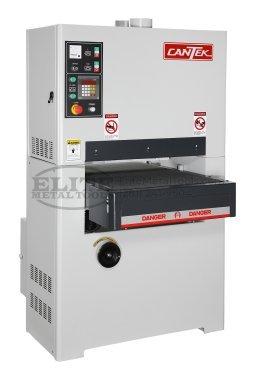

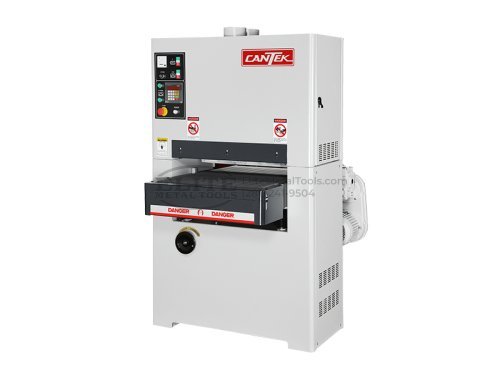

Cantek Classic S Single Phase 25″ x 60″ Wide Belt Sander S251

Description

The Cantek S251 24″ Widebelt Sander is compact and versatile with a combination sanding unit for calibration and final sanding. The robust sanding unit and heavy-duty frame ensure optimum sanding results. Motorized thickness adjustment with digital thickness control for fast and accurate table adjustment.

Why Cantek S251 24″ Widebelt Sander?

• Accurate digital thickness control with both Inch & Metric settings allows the operator to key in the desired thickness, and the table will automatically move into position. (Settings to 0.005” or 0.1mm)
• Combination sanding unit with 4″ rubber contact drum and 1.8″ wide adjustable sanding platen for a wide range of sanding applications from material calibration to final sanding.
• Compact design requires a small footprint, ideal for smaller shops with limited floor space

Key Advantages

• Powerful 10HP sanding motor performs material calibration with ease.
• Reinforced rubber conveyor belt provides superior grip and optimal accuracy.
• Electronic belt tracking for optimum belt life and sanding results.
• Four table elevation jack screws
• Ammeter for load monitoring to ensure the proper amount of material is removed according to the selected grit.
• Disc brake on the main motor allows for faster belt changes.
• Pneumatic belt tensioning with quick-release outboard support to facilitate fast belt changes.
• Numerous machine and operator safety features including material over height safety bar, interlocks on all access doors, pressure sensors, safety bump bar, over track limit switches and more.

Specifications

• Abrasive Belt Size: 25” x 60”
• Main Motor: 10 HP
• Feed Motor: 1 HP
• Table Rise/Fall Motor: 0.25 HP
• Working Width: 24″
• Minimum Part Length: 13″
• Minimum Thickness Opening: 5.9″
• Feed Speed – Variable: 15 to 49 FPM
• Pass Line Height: 37″
• Dust Outlet: 2 @ 4”
• Compressed Air Pressure: 57-72 PSI
• Compressed Air Volume: 0.7 CFM
• Dust Collection Requirements: 824 CFM
• Net Weight: 1,344 lbs.
• Machine Dimensions: 50” x 40” x 66”
• Electrical Requirements: 230/1/60 = 56.25 Amps
