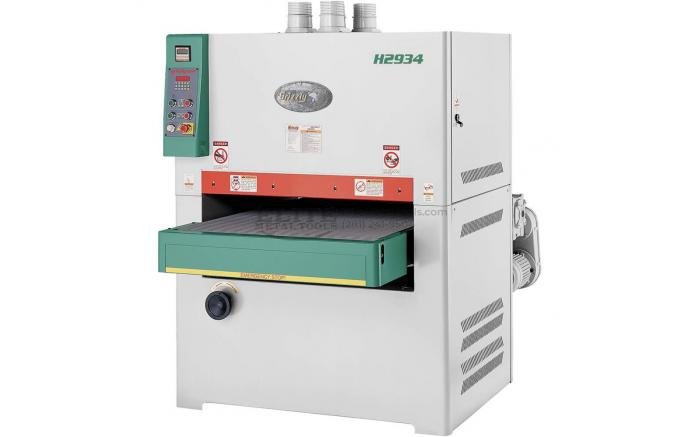

Grizzly Industrial 37” Double Head Wide-Belt Sander H2934

Description

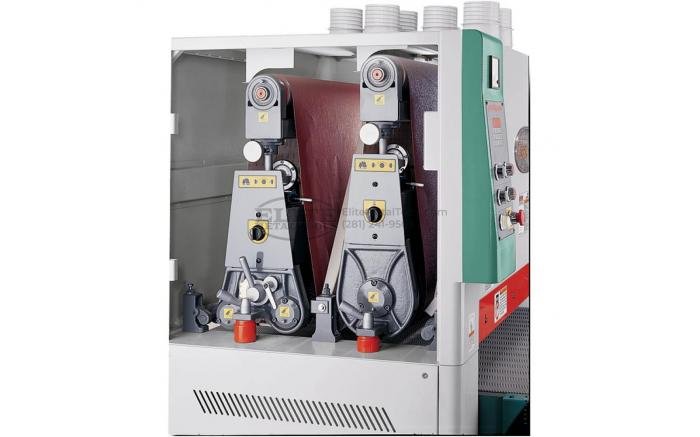

Rarely can a machine claim to cut your sanding time in half, but Grizzly’s Double Head Wide-Belt Sanders feature dual heads enabling them to sand to finer grits in a single pass! The first belt runs on a single drum and the rear belt runs on a platen system which allows you to adjust the sanding depth. If you are still sanding through 2 grit levels using a single head wide-belt sander you are not being the most efficient. CSA certified meeting CSA C22.2 #71.2-08 and UL 987-7 standards!

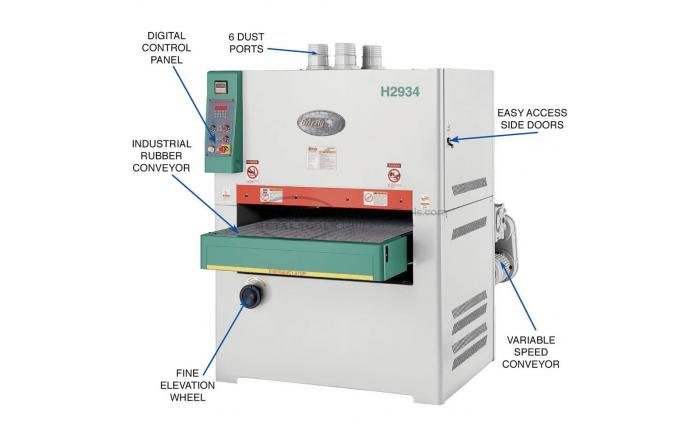

Features

• Rubber pressure rollers
• Hard rubber infeed drum
• Adjustable graphite platen
• Digital encoder depth control
• Amp/load meter
• Disc brake for emergency stop
• Variable feed speed
• Made in an ISO 9001 Factory!

Specifications

• Sanding motor HP: 20 HP, TEFC
• Sanding motor voltage: 220V/440V*
• Sanding motor phase: 3-phase
• Sanding motor amps: 50.3A/25.1A
• Conveyor motor HP: 1 HP, TEFC
• Conveyor motor amps: 3.4A/1.7A
• Table lift motor HP: 1/4 HP, TEFC
• Table lift motor amps: 1.2A/0.6A
• Footprint: 52″ x 31″
• Maximum board width: 36-1/2″
• Maximum board thickness: 6″
• Minimum board length: 14″
• Minimum board thickness: 3/16″
• Front drum surface speed: 3500 FPM
• Rear drum surface speed: 2600 FPM
• Conveyor speed: 14–60 FPM
• Sanding belt size: 37″ x 60″
• Air requirement: 57 – 75 PSI, 12.3 CFM
• Overall width: 54″
• Overall height: 71-1/2″ H
• Overall depth: 59-1/2″
• Dust ports: 6
• Approx. shipping weight: 2461 lbs.
