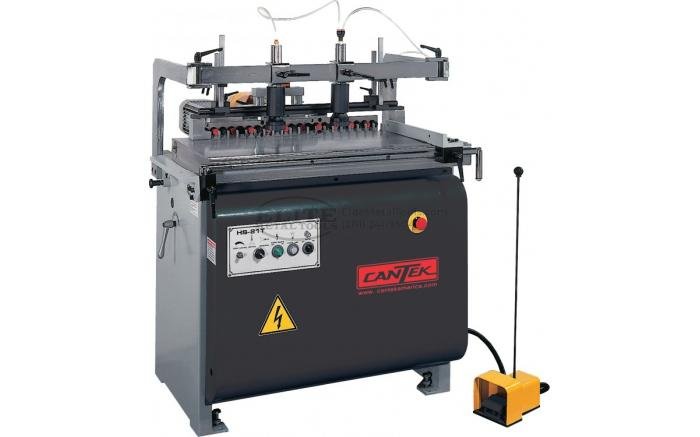

Cantek Construction and Line Boring Machine HS-21T

Features

• Single line boring machine with 21 spindles at 32mm centers

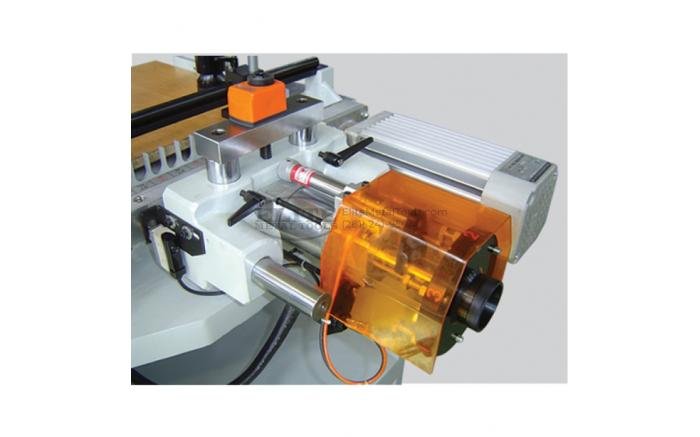

• Tiltable boring unit can be changed from horizontal to vertical drilling by pneumatic setting
• Boring unit can be tilted manually for angular drilling
• Pneumatic drilling cycle by convenient foot pedal
• Adjustable drill feed speed

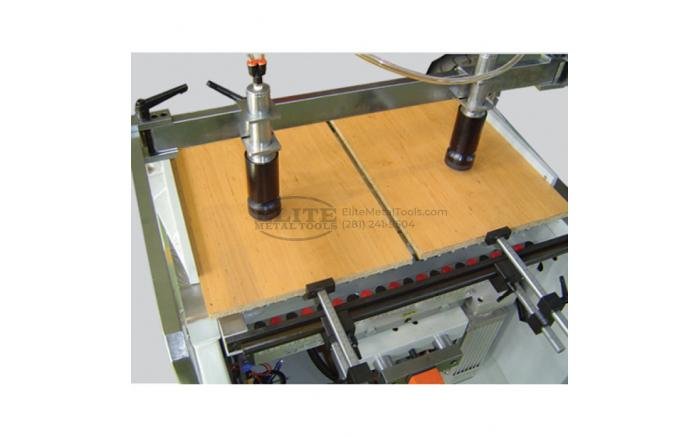

• Two fences provide convenient positioning of the workpiece
• Mechanical digital readouts are provided for precise setting of the boring head
• Quick 6-position boring depth selector for fast changeover
• Two-fold away side fences for end boring or drilling smaller components
• 3-meter back fence with 4 adjustable stops for line boring or they can be set on the side fence for dowel drilling on the face of the gable
• 21 quick change chuck for fast changeover

Specifications

• Distance Between Center: 32mm
• Number of Spindles: 21
• Max. Drilling Depth: 3″(75mm)
• Boring Head Adjustment: 0° to 90°
• Table Size: 34.33″ x 19.3″
• Spindle Speed: 2800 RPM
• Motor: 2.5 HP
• Machine weight: 770 lbs (350kgs)
• Shipping weight: 946 lbs (430kgs)
• Machine dimensions: 38.11”x32 ¼” x 48” (968x820x1220mm)
• Shipping dimensions: 45”x35”x54” (1143x889x1372mm)
