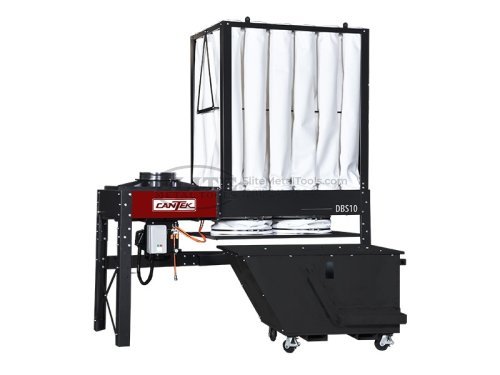

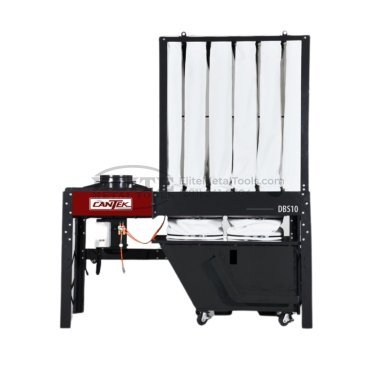

Cantek DBS Series 230V Three Phase 10HP 5000 CFM Self-Dumping Dust Collector DBS10
$14,805.00
- CFM capacity: 5000 CFM @ 7.9” WC
- Filter info: 1 Micron Filter Bags: 8” dia x 63” long x 24 pcs
- Filtration surface: 263 sq.ft
- Inlet diameter: 14”
Description
The DBS series are high efficiency indoor dust collectors generating up to 5000 CFM and are available in 10HP or 15HP. Equipped with a low RPM (1750 rpm) blower is designed to run much quieter than other high RPM units. The 1-micron filter bags ensure optimum air filtration and can be manually shaken too for cleaning. The large 168-gallon self dumping collection bin comes on casters and be conveniently lifted by a forklift and tilted to dump the wood waste into your larger waste bin. A pneumatic lever is used to lift the sleeves connecting the system to the dump bin which saves time and effort.
Removable Dump Bin/Manual Shaker
The dump bin is shown removed from under the dust system, ready to be picked up by a forklift from the end. The manual shaker is used to clean the upper filter bags to keep efficiency at an optimum.
Dump Bin

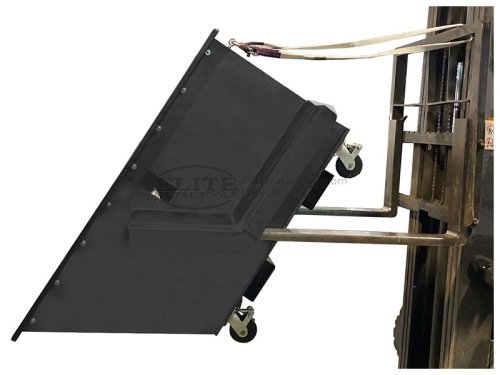

168-gallon capacity dump bin can be conveniently wheeled form beneath the dust collector and picked up with a fork lift for dumping in to your larger bin for disposal. The bin is equipped with a safety strap to be connected to your forklift.
Why Cantek DBS10 Dust Collector?
- 10HP blower motor generating 5000 CFM @ 8” WC
- Low RPM blower (1750 rpm) generating only 80 dB
- Convenient self-dumping bin with 168-gallon capacity
- Compact design is ideal for a small to mid sized shop looking for a stand alone or a larger shop looking to add a secondary dust system
Features
- High efficiency 10HP TEFC motor
- Heavy gauge steel construction for long durability
- Self dumping bin allows operator to quickly, safely, and conveniently dispose of wood waste
- 14” main inlet diameter
- Pneumatic raising/lowering of dust sleeves to connect system with dump bin for added convenience
- High efficiency 1-micron filter bags (24 pcs)
- Manual shaker system for cleaning of filter bags
- Magnetic starter included
- Dust collection comes disassembled
Specifications
- CFM capacity: 5000 CFM @ 7.9” WC
- Filter info: 1 Micron Filter Bags: 8” dia x 63” long x 24 pcs
- Filtration surface: 263 sq.ft
- Inlet diameter: 14”
- Sound rating: 80 dB
- Disposal capacity: 168 gallons
- Blower motor: 10 HP
- Electrical Requirements: 230V Three Phase 60Hz 28Amp
- Machine Dims: 102” x 43” x 122”
- Approx Weight: 1,400 lbs
Optional Add-Ons
- Additional collection bin
Additional Information
| Manufacturer | Cantek |
|---|---|
| SKU | DBS10 |
| Shipping Method | LTL Freight |
| Weight | 1,500 lb |
| Dimensions | 69 × 46 × 49 in |
Product Documents
| Weight | 1500 lbs |
|---|---|
| Dimensions | 69 × 46 × 49 in |
| Brand | Cantek |
