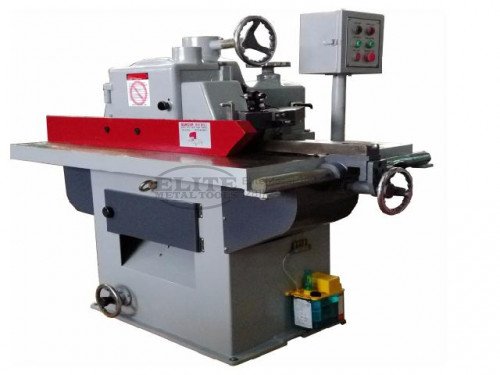

Castaly Industries 12” Single Top Cutting Rip Saw TRS-0012

Features

• Their precision machining and attention to operator safety and the production needs make these machines some of the most cost effective machines available in the world today.
• Hard chrome-plated table for maximum wear resistance.
• Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.
• Double anti-kickback fingers mounted at the infeed end provides maximum safety protection.
• Heavy-duty industrial motor for powerful cutting capacity.
• Ruggedly constructed sheet metal frames for durability usage.
• The variable feed speed enables the machine to meet different requirement of work.
• V-way track and chain block surface are heat-treated for long wear resistance.
• Automatic lubrication to V-Way track facilitates chain running smoothly.
• Precision built saw head ensures accuracy for straight line rip saw operations.
• The saw arbor is manufactured from NI-Cr-MO alloy steel for durability and anti-fatigue, heat treated, precision ground and balanced providing precise cutting performance.
• Four bearing spindle mount ensuring rigidity & long life.
• Four pressure rollers for precise cutting of large and small workpieces.
• Heavy-duty cast iron table.

Specifications

• Maximum Cutting Depth: 3-3/4″
• Arbor Diameter: 1″
• Max. Amount of Blades Per Spindle: 1
• Saw Blade Size: 8½” ~12″
• Table Dimensions: 33″ x 59″
• Spindle Speed: 4500 RPM
• Feeding Speed (RPM): 30 ~ 85
• Throat Depth (1st Blade): 15″
• Main Motor: 10 HP
• Feed Motor: 1 HP
• Feed Chain Width: 6″
• Automatic Lubrication: YES
• Minimum Workpiece Length: 12″
• Exhaust Hood Diameter: 4″
• N.W.: 1870 LBS
• G.W.: 2000 LBS

Options

• AF-RT – Extension Rollers Side Table
• LA-6000 – Laser Beam Light
