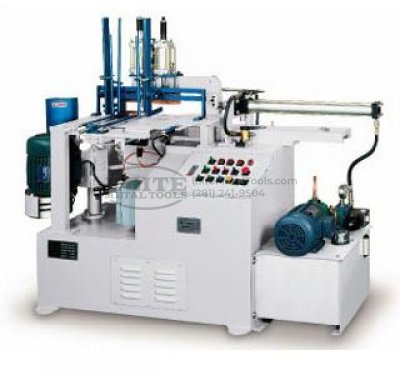

Castaly Industries 12” Auto Line Copy Shaper CS-300P

Features

• The CS-300P are ideally suited for manufacturing of wood brush handle, knife handle, bamboo or wood spoon, various irregular furniture handle.
• The machine uses profiler cutters, incorporating a copy mechanism driven by pneumatic power to cut workpiece as correct profile according to the template shapes.
• High production rate operated by the hydraulic power feeding.
• Against wood grain cutting eliminates the defect caused by jog cutting.
• Variable feed speed control for the best finish result.
• Labor saving, with the fully automatic performance, enables one operator can manage 7 ~ 8 machines simultaneously.
• It needs only to load the material into hopper, the operation is fully automatically performed complete cutting cycle.
• Since the product surface is very smooth, only minimum sanding is required.
• Pneumatic hold down to keep the workpiece tight without slipping.
• CS-300P has 1 cutter at each side to perform rough & fine cutting at same time.

Standard Equipment

• Cutter – 1 set
• Template – 1 set

Specifications

• Max. Working Length: 12″
• Range of Workpiece Width: 3/4″ ~ 6″
• Range of Workpiece Thickness: ¼” ~ 2-3/8″
• Production Rate: 5 ~ 9 PCS/MIN.
• Spindle Speed: 9000 RPM
• Spindle Length: 3″
• Cutter Size: 4″
• Spindle Diameter: 1″
• Spindle Motor: 5 HP x 2
• Hydraulic Pump Motor: 2 HP
• N.W.: 1430 LBS
• G.W.: 1760 LBS
