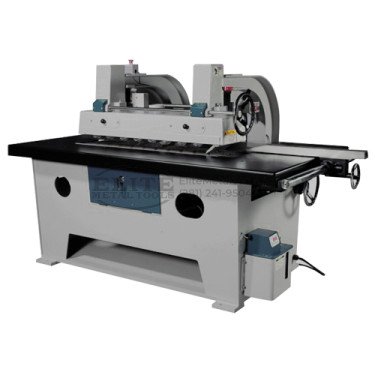

Castaly Industries 16” Single Bottom Cutting Rip Saw TRS-3016

Features

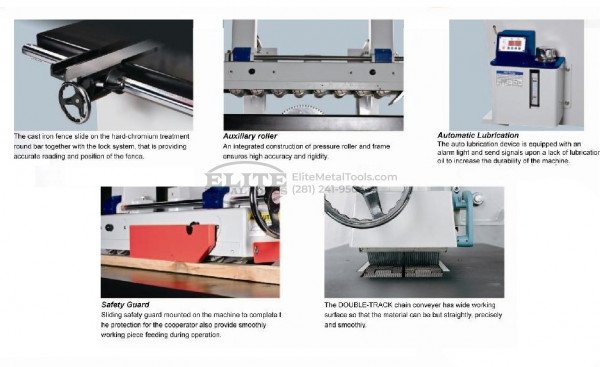

• Precision fence ensures absolute accuracy between blade & fence, equipped with measuring ruler gauge.
• Double anti-kickback fingers mounted at the infeed end provides maximum safety protection.
• Heavy-duty industrial motor for powerful cutting capacity.
• Ruggedly constructed cast iron frames for durability usage.
• The variable feed speed enables the machine to meet different requirement of work.
• V-way track and chain block surface are heat-treated for long wear resistance.
• Automatic lubrication to V-Way track facilitates chain running smoothly.
• Precision built saw head ensures accuracy for straight line rip saw operations.
• Four bearing spindle mount ensuring rigidity & long life.
• Four pressure rollers for precise cutting of large and small workpieces.
• The auto lubrication device is equipped with an alarm that sends signals upon a lack of lubrication oil to increase the durability of the machines.

Specifications

• Maximum Cutting Depth: 5″
• Arbor Diameter: 1″
• Max. Amount of Blades Per Spindle: 1
• Saw Blade Size: 10″ ~16″
• Table Dimensions: 40″ x 70″
• Spindle Speed: 3600 RPM
• Feeding Speed (RPM): 30 ~ 85
• Throat Depth (1st Blade): 20″
• Main Motor: 15 HP
• Feed Motor: 1 HP
• Feed Chain Width: 6″
• Automatic Lubrication: YES
• Minimum Workpiece Length: 12″
• Exhaust Hood Diameter: 4″
• N.W.: 2600 LBS
• G.W.: 2900 LBS

Options

• LA-6000 – Laser Beam Light
