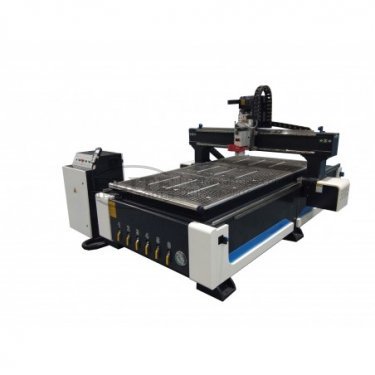

Castaly Industries 4’ x 8’ Standard Woodworking CNC Router Standard-408

Features

• All “servo motor” driving system: All axis are driven by brush-less type, high torque AC servo motors.
• DSP CNC controller is setup to accept standard G-code programming formats along with on board conversational applications.
• Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be imported,
• modified and edited from here to create a G-code.
• Moving gantry construction for space saving.
• The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and accuracy.
• The HSD spindle uses CP4 DB bearings with a dust-free design. The heavy-duty fan cooling system forces air through the spindle to
• assist in trouble-free operation.
• Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.

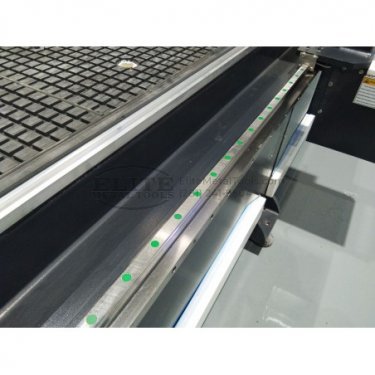

• Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and
• precision.
• The X & Y axis are equipped with a precision rack & pinion driving system.
• The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.

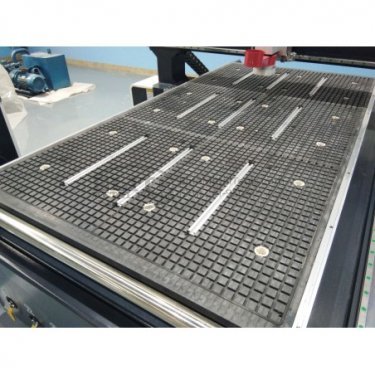

• Special design 4 zone vacuum table surface for powerful hold down.

Specifications

• Control System: NK105 DSP control
• Spindle: Italy HSD 8.6 HP (6KW) air cooling, speed 6,000-18,000 rpm/min
• Lathe Frame: Heavy duty metal welding
• Table: 6 zone Vacuum table
• Driving System: Japan Yaskawa servo drive & motor
• X, Y Axis Structure: Helical rack and pinion drive
• Z Axis Structure: Taiwan TBI or HIWIN ball screw
• X Y Z Axis Square Rails: Taiwan HIWIN brand linear square rails
• Inverter: 7.5 KW Inverter
• Electric Parts: France Schneider
• Limited Switch: Japan Omron
• Machine Cable: German Siemens OEM factory cable
• Oil Lubrication: Hand control with Aluminum oil pipe
• Machine Working Size: X*51’’, Y*98’’, Z*7-3/4’’
• Machine Size (L X W X H): 122” x 87” x 71”
• Machine Max. Travel Speed: 1,400 IPM
• Machine Max. Working Speed: 1,000 IPM
• Machine Power: 3 PH ,220 V ,38 AMP
• Machine Net Weight: 3,510 lbs

Options

• Rotary Axis

Additional Information

Product Documents

• Download Brochure
