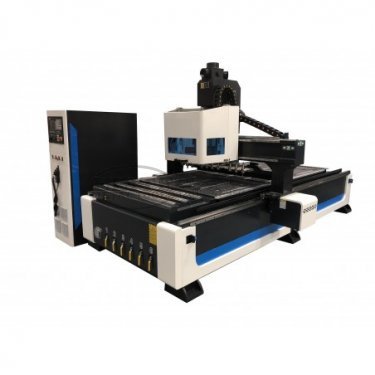

Castaly Industries 4’ x 8’ Woodworking CNC Router with Rotary Auto Tool Change Super-408RT

Features

• Automatic 8 pcs ISO30 Rotary Tool Change for increased productivity.
• All “servo motor” driving system: All axis are driven by brush-less type, high torque AC servo motors.

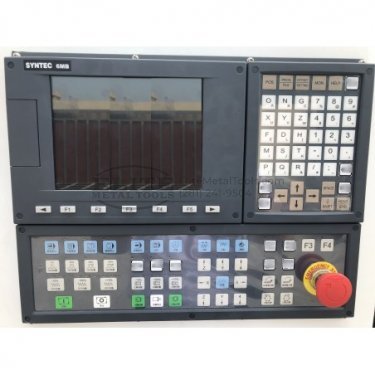

• Syntec CNC controller is setup to accept standard G-code programming formats along with on board conversational
• applications.
• Optional CAD/CAM system can create and edit part programs then send to machine for easy cutting. DXF files can be
• imported, modified and edited from here to create a G-code.
• DNC is no longer required as the PC directly stores all part programs in a text editable file.
• Machine designed ready for 3-D cutting usage and superior performance.
• Moving gantry construction for space saving.
• The rigid steel frame construction has been stress relieved prior to finish machining to provide repeat-ability and accuracy.

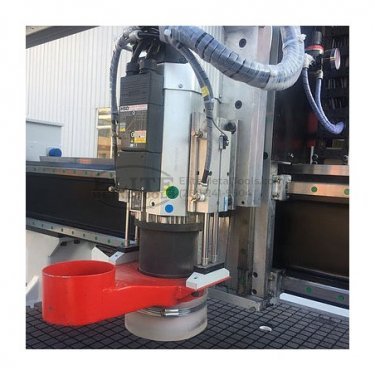

• The HSD spindle uses CP4 DB bearings with a dust-free design. The heavy-duty fan cooling system forces air through the
• spindle to assist in trouble-free operation.
• Automatic frequency brake for the spindle allows rapid deceleration resulting in faster tool changes.
• Linear guides and sliding blocks are prismatic pre-loaded with recirculation bearings to ensure maximum rapid traverse and
• precision.
• The X & Y axis are equipped with a precision rack & pinion driving system.
• The Z axis utilizes a ball screw assembly complete with the pre-loaded and ground screw for long life and optimum accuracy.
• Special design 6 zone vacuum table surface for powerful hold down.

Specifications

• Control System: SYNTEC Control system
• Tool Change: Automatic 8 pcs ISO30 Tools, Rotary Tool Quick Change
• Spindle: HSD 12.8 HP (9.6 KW) air cooling, Quick Change, speed 6,000-24,000 rpm/min
• Lathe Frame: Heavy duty metal welding with quenching process
• Table: 6 zone Vacuum table
• Driving System: Japan Yaskawa AC servo drive & motor & Japan SHIMPO Gear Box
• X, Y Axis Structure: Taiwan TBI or HIWIN Helical rack and pinion drive
• Z Axis Structure: Taiwan TBI or HIWIN ball screw
• X Y Z Axis Square Rails: Taiwan HIWIN brand linear square rails
• Inverter: 11 KW Inverter
• Electric Parts: France Schneider
• Limited Switch: Japan Omron
• Machine Cable: German Siemens OEM factory cable
• Oil Lubrication: Automatic control with filter
• Machine Working Size: X*51”, Y*98”, Z*7-3/4”
• Machine Size (L X W X H): 87” x 122” x 71”
• Machine Max. Travel Speed: 2,350 IPM
• Machine Max. Working Speed: 1,100 IPM
• Machine Power: 3 PH ,220 V ,53 AMP
• Machine Net Weight: 4,020 lbs

Additional Information

Product Documents

• Download Brochure
