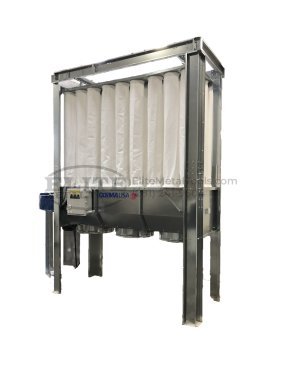

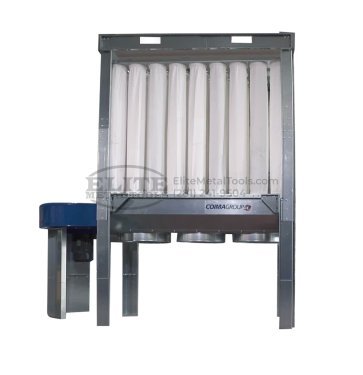

Coima USA SHK-2-v2 7.5HP Shaker Series 230V Three Phase Enclosureless Dual Bag Dust Collector 101-00015

Description

The SHK Series enclosureless dust collector is designed for the collection of sawdust and is ideal for indoor use in smaller wood shops or for more localized extraction dedicated to specific woodworking machinery. The collector may also be used when working with other materials such as plastics, grains & fours, stone dusts, and more. The integral mechanical shaker cleaning system increases production time by reducing labor required to maintain filter efficiency. The filters can be mechanically shaken after the fan is switched off (per NPA guidelines).

The filter housing supports anti-static polyester filter sleeves fixed by double snap rings into a tube sheet, which is mounted atop the material collection hopper that empties the collected material into plastic bags. The collector frame is made of durable 14ga galvanized sheet steel. The material handling fan is rated for S1 duty cycle (continuous running) and features a premium efficiency IP55 motor.

The SHK Series collector comes with the hopper and waste discharge bags standard. Other waste discharge options are available. Inlet adapter sold separately.

Features

• NFPA compliant for indoor use
• Motorized shaker
• UL Labeled Control Panel/Starter
• Frame made of durable 14-gauge galvanized sheet steel
• Motor rated IP55 as protection and IE3 as efficiency

Specifications

• Static Pressure: 8”
• Airflow (CFM): 3600
• Waste Bags: 2
• Fan: 7.5 HP
•  Filter Area: 238 ft²
• Filters: 24
• Motor: 230V Three Phase 60-Hertz
• Dimensions (LxWxH):  102” x 57” x 126.75”

Options

• Inlet Adapter (101-00051)
• Waste Discharge
  • Haul-away forklift dump bin
  • Waste barrels with viewing windows
  • Collection hopper with rotary screw extractor and rotary air lock
  • Closed-loop material transfer system
• Enclosure Panels
• Additional Safety Equipment
