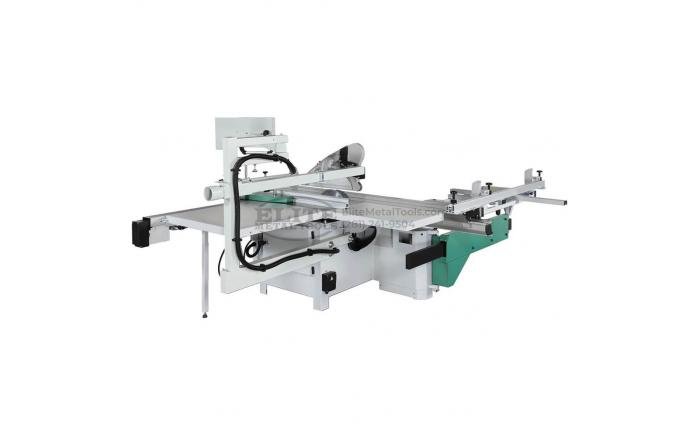

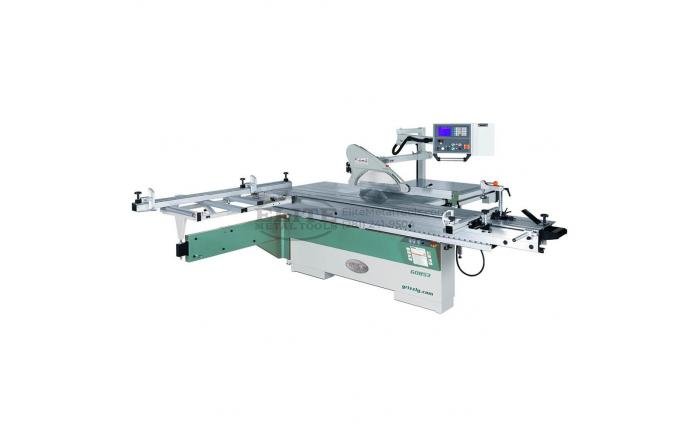

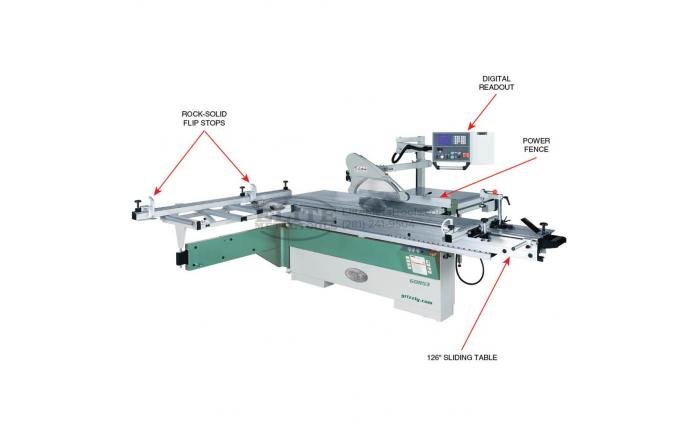

Grizzly Industrial 14” Sliding Table Saw with Digital Fence G0853

Description

In a production wood shop, time is money. Instantly save time by having all the control and power at your fingertips with the G0853 14″ Sliding Table Saw. The G0853 features digital controls for precise main blade tilt from 0–45°, and speed adjustments between 3000, 4000, and 5000 RPM. Reduce setup time and cut list errors with the motorized rip fence for unparalleled accuracy. Safety and ease-of-operation are essential, and the G0853 features dual operation stations, so whether using the rip fence side of the table or the full 126″ of crosscutting space, control is always within reach. Glide through nearly any project with confidence thanks to this high-capacity, easy-to-use slider today!

Features

• Accepts 12″ and 14″ blades
• Digital controls for main blade speed, tilt, scoring blade alignment, and rip fence adjustment
• Cross-slide table with eccentric locking clamp and hard chrome-plated slideway
• Easily adjustable blade guard with built-in dust hood
• Miter fence adjustable 30° left and 45° right
• Scoring blade virtually eliminates tear-out
• Sliding table on vertical guide system with precision bearing rollers
• Made in an ISO9001 factory

Specifications

• Main motor: 10 HP, 220V/440V*, 3-phase, 26A/13A
• Scoring motor: 1 HP
• Main blade size: 14″
• Main blade tilt: 0–45°
• Depth of cut at 90°: 4″
• Depth of cut at 45°: 2-3/4″
• Main blade speed: 3000, 4000, 5000 RPM
• Main blade arbor: 1″
• Scoring blade size: 120mm (4-3/4″)
• Scoring blade arbor: 20mm
• Scoring blade speed: 8000 RPM
• Scoring blade tilt: 0–45°
• Sliding table size: 15-5/8″ x 126″
• Maximum rip capacity: 51-1/2″
• Length of crosscut: 126″
• Overall size: 132″ W x 155-3/4″ D x 65-1/4″ H
• Approximate shipping weight: 2176 lbs.

Additional Information

Product Documents

• Download Brochure
