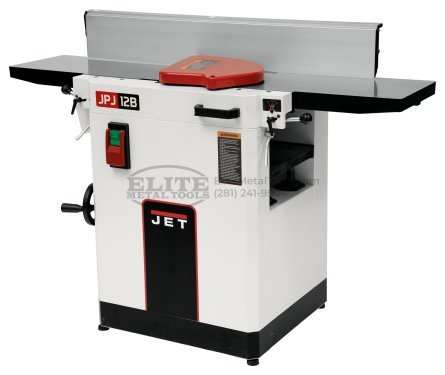

Jet 12″ Planer / Jointer 3HP | JPJ-12B 715100
$4,545.00
- Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
- Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
- Large handwheel for quick and precise adjustments of planer table
- Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments
You don’t have to choose between buying a jointer or a planer – with the JPJ-12B, you can have both. Leave it to JET to design a machine that allows quick changeover between jointing and planing functions. This versatile machine features an extra-large aluminum extruded fence with centered controls for quick adjustments, a built-in dust chute capable of handling both planing and jointing operations, and a powerful 3-horsepower motor that can handle the toughest lumber. A heavy-duty, fully welded steel base cabinet houses the motor and the planer table mechanism, while providing solid mounting for the associated controls and support for the jointer table and fence assemblies. Best of all, the fence can stay put when changing over functions.
- Extremely quick changeover between jointing and planing functions. Fence does not need to be removed
- Heavy-duty cast iron tables with a ground finish to ensure accuracy and flatness
- Heavy-duty, one-piece steel closed stand includes mounting tabs for increased stability
- Large handwheel for quick and precise adjustments of planer table
- Parallelogram design keeps the table close to the cutterhead for improved finish and allows for precise depth of cut adjustments

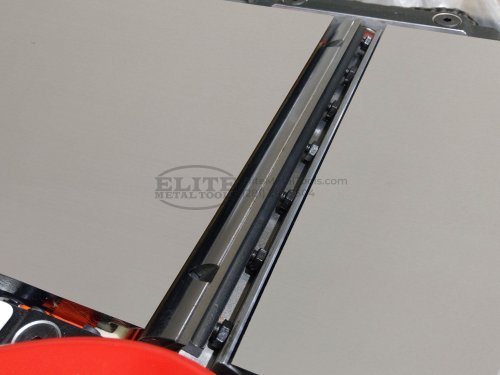

- Three high-speed steel knife cutter head provides rapid cutting and a superior finish
| Specification | Value |
|---|---|
| Type of Cutterhead | Straight Knife |
| Maximum Depth of Cut – Planing (In.) | 5/32 |
| Number of Knives | 3 |
| Standard Knife Size (L x W x T) (In.) | 12-3/16 x 11/16 x 1/8 |
| Maximum Planing Width (In.) | 12 |
| Cuts Per Minute | 15,900 |
| Cutterhead Diameter (In.) | 2-3/4 |
| Maximum Planing Thickness (In.) | 8-3/4 |
| Minimum Planing Length (In.) | 10 |
| Cutterhead Speed (RPM) | 5300 |

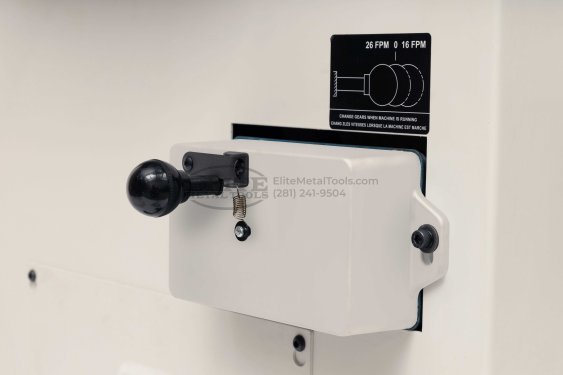

| Feed Rate – Planing (FPM) | 2 speed 16 to 26 FPM |
| Planer Cutting Capacity (W x D) (In.) | 12 x 8-3/4 |
| Planer Table Size (L x W) (In.) | 25 X 12-1/32 |
| Overall Height (In.) | 40 |
| Jointer Cutting Capacity (W x D) (In.) | 12 x 1/8 |
| Jointer Table Size (L x W) (In.) | 55×12-1/32 |
| Fence Tilt (Deg.) | 90 to 45 R |
| Fence Positive Stops (Deg.) | 90 and 45 R |
| Motor Power (HP) | 3 |
| Fence Size (L x H) (In.) | 43-1/4 x 5-7/8 |
| Dust Collection Minimum CFM Required (CFM) | 550 |
| Dust Port Outside Diameter (In.) | 4 |
| Motor Voltage (V.) | 230 |
| Overall Dimensions (L x W x H) (In.) | 55-7/16 x 28-15/16 x 40 |
| Prewired Voltage (V.) | 230 |
| Recommended Circuit Size (Amps.) | 30 |
| Net Weight (Lbs.) | 453 |
| Length | 58.0000 |
| Height | 47.0000 |
| Weight | 607.0000 |
| Width | 32.0000 |
Additional Information
| Manufacturer | JET |
|---|---|
| SKU | JT9-715100 |
| UPC | 731325772760 |
| Shipping Method | LTL Freight |
| Weight | 607 lb |
| Dimensions | 58 × 32 × 47 in |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
Product Documents
| Weight | 607 lbs |
|---|---|
| Dimensions | 58 × 32 × 47 in |
| Brand | JET |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
