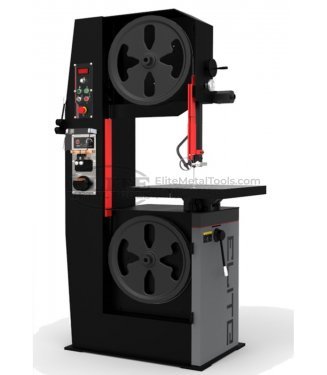

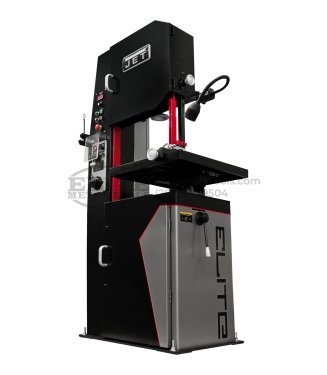

Jet EVBS-26, 26″ EVS Vertical Bandsaw 891115
$19,095.00
- 4.2 Kilo-volt ampere bi-metal blade welder has a safety glass cover for increased user safety
- Built-in chip blower re-directs debris from the cutting area, while the magnifying glass provides a clear view
- Easily adjustable blade guard for increased safety
- Handwheel with blade tensioning gauge accurately measures blade pressure to prevent breakage
- Heavy-duty enclosed steel frame provides strength and rigidity
Description
Elite EVS Vertical Bandsaws are the perfect blend of power and balance. Featuring variable speed drive-train with precision balanced cast-iron blade wheels with a bonded rubber blade track, precision ground articulating table, 4.2 KVA Bi-Metal Blade stations, and CSA / CUS Certification make Elite vertical bandsaws the choice for precision sawing of ferrous and non-ferrous materials.
- 4.2 Kilo-volt ampere bi-metal blade welder has a safety glass cover for increased user safety
- Built-in chip blower re-directs debris from the cutting area, while the magnifying glass provides a clear view
- Easily adjustable blade guard for increased safety
- Handwheel with blade tensioning gauge accurately measures blade pressure to prevent breakage
- Heavy-duty enclosed steel frame provides strength and rigidity
- Precisely ground, articulating table with 10° left and 45° right movement for contour cutting at any angle
- Precision balanced cast-iron blade wheels transmit speed and torque to the blade
- Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
| Specification | Value |
|---|---|
| Blade Speeds (SFPM) | Variable 50-5000 |
| Height Capacity (Max.) (In.) | 14 |
| Throat Capacity (In.) | 26 |
| Welding voltage (V) | 4.2 KVA Bi-Metal Welder |
| Blade Length (In.) | 185-1/2 |
| Table Size (L x W) (In.) | 27-1/2 x 23-1/2 |
| Blade Width (Min.-Max.) (In.) | 1/8 – 1 |
| Weight (Lbs.) | 1433 |
| Overall Height (In.) | 83-1/2 |
| Electrics | 2HP, 230/460V, 3 Phase |
| Table Height (In.) | 39-3/8 |
| Motor (HP) | 2HP, 230/460V, 3-Phase |
| Prewired Voltage (V.) | 230 |
| Overall Dimensions (L x W x H) (In.) | 51 x 32 x 83-1/2 |
| Net Weight (Lbs.) | 1433 |
| Gross Weight (Lbs) | 1655 |
| Height | 83.5000 |
| Length | 51.0000 |
| Weight | 1741.0000 |
| Width | 32.0000 |
Additional Information
| Manufacturer | JET |
|---|---|
| SKU | JT9-891115 |
| UPC | 731325265613 |
| Shipping Method | LTL Freight |
| Weight | 1,741 lb |
| Dimensions | 51 × 32 × 83.5 in |
| Country of Origin | Taiwan |
