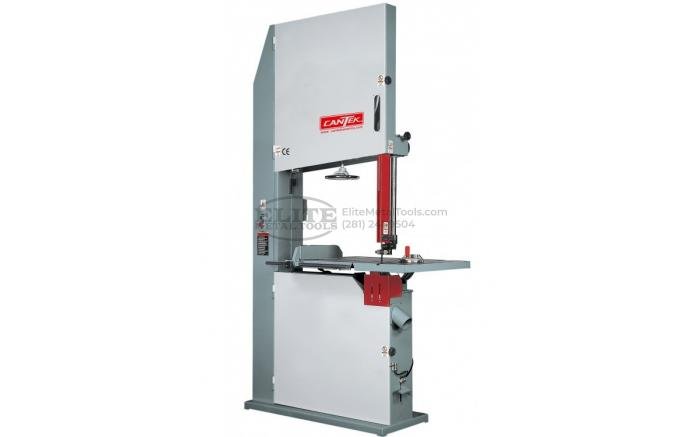

Cantek 24” Bandsaw Resaw 5 HP Three Phase Motor HB-600A
$6,720.00
- 2 in 1 machine for rip and curve band sawing
- Saw Wheel Diameter: 24″
- Table Size: 31-1/2″ x 23-3/4″
- Throat Capacity: 22-7/8″
Description
Features
- 2 in 1 machine for rip and curve band sawing

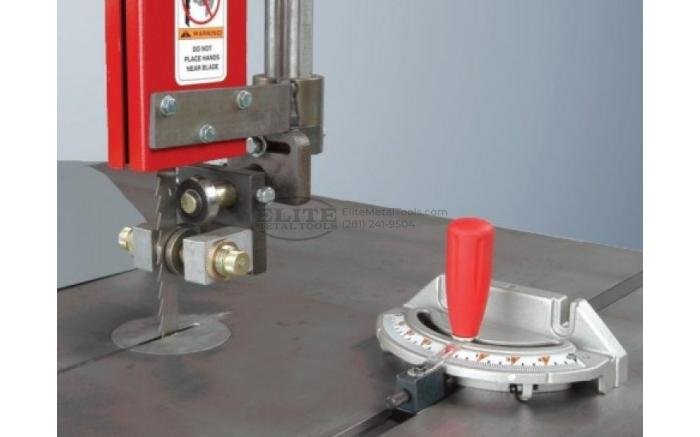

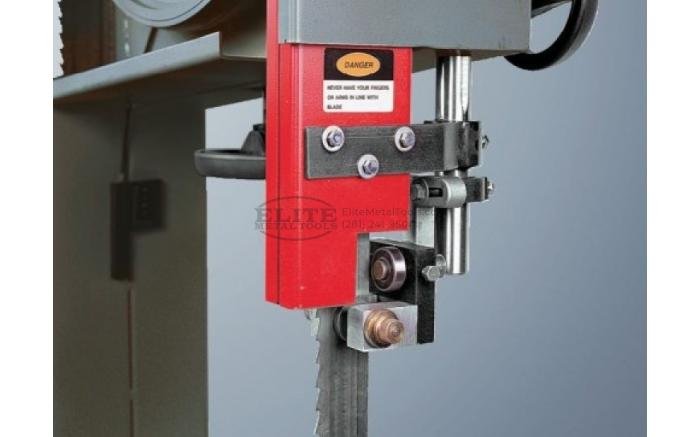

- Bearing blade guide mechanism with side and back bearing guide for rigid back-up support of the blade
- Micrometric adjustment to upper guide
- Cast iron saw wheels are precision machined and laminated with rubber for accurate blade tracking and slippage prevention
- Cast iron work table is precision ground and can tilt to 45 degrees
- Blade tension is conveniently adjusted by means of a handwheel and tension is shown by a scale for accurate tension setting.
- Foot brake for quick shutdown of machine
- Heavy gauge steel frame ensures vibration free cutting
- (2) 4” dust hose included as standard
Specifications
- Saw Wheel Diameter: 24″
- Table Size: 31-1/2″ x 23-3/4″
- Tilting Table: 0~45°
- Throat Capacity: 22-7/8″
- Height Under The Guide: 13-3/4″
- Width of Saw Wheel: 2″
- Blade Speed: 4458 FPM
- Blade Length: 173-5/8″ ~ 176-1/2″
- Blade Width: 1/4″ ~ 2″
- Motor: 5HP
- Dust Hood: (2) 4″
Additional Information
| Manufacturer | Cantek |
|---|---|
| SKU | HB-600A (5HP) |
| Shipping Method | LTL Freight |
| Weight | 990 lb |
| Dimensions | 85 × 25 × 45 in |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
Product Documents
Additional information
| Weight | 990 lbs |
|---|---|
| Dimensions | 85 × 25 × 45 in |
| Brand | Cantek |
| Country of Origin | Taiwan |
| Warranty | 1 Year (Parts) |
