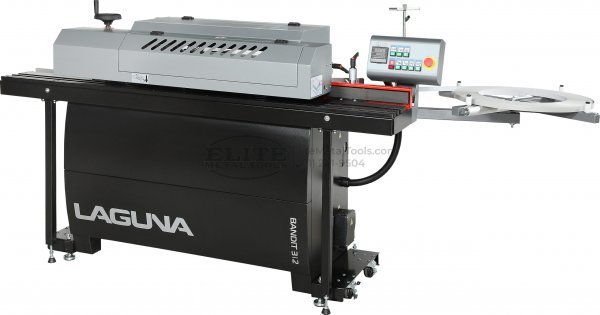

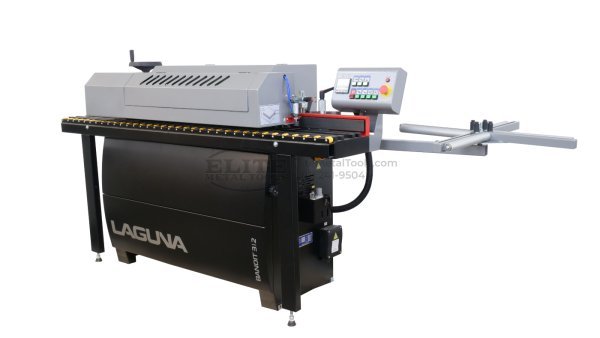

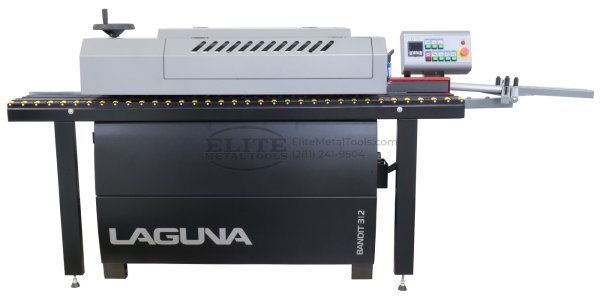

Laguna Tools Bandit 3/2 220V Single Phase Edgebander MEB-3/2-0135

Description

The Laguna Tools Bandit 3/2 is the compact heavy-weight in our line of automatic edgebanders. Designed for every-day professional use with all 2mm materials. The gluepot allows for maximum flexibility for use with PVC, wood tape, laminate and wood strips. Standard features include automatic end trim with dual blade end cutting units, edge trimming with dual high frequency motors, buffing unit, adjustable overhead control panel, pull out support rollers for wide panels, and electronic temperature control with digital readout.

Features

• Power: 220 Volt, 1 phase 40 Amp
• Compressed Air Required: 87 PSI Clean dry air
• Tape Thickness (min-max): 0.4 mm – 2 mm
• In-feed Fence: Heated
• Glue Tank Capacity: 30 oz Teflon Coated
• *Wheel System Not Included

Specifications

• Glue Heating: 5 Elements with Auto Temperature Control
• Glue Applications: Micro-Adjustable
• Pressure Rollers: Dual
• Panel Feed: Automatic Belt Feed
• Work Table Length: 79″
• Minimum Panel Length: 9.44″
• Minimum Panel Width: 4 3/4″
• Panel Thickness (Min – Max): .47″ – 1.77″
• Dust Collection Port: 4″
• Edgebanding Coil Capacity: 31 1/2″ Diameter
• End Trim: Saw Blade – Front and Rear Automatic
• Edge Trim: Carbide Insert Shaper Cutters – Top and Bottom
• Buffing: Top and Bottom
• Weight: 1200 lbs
• Shipping Size (L x W x H): 84″ x 29″ x 52″
• Pull-Out Support: Standard
• Centralized Controls: PLC Standard

Available Options

• Mobility Kit
