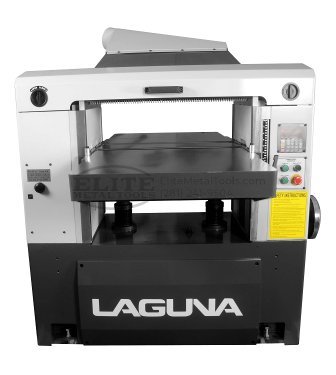

Laguna Tools P|25 10HP 220V Single Phase 25” Industrial Planer MPLAN25-10-1-0130
$18,598.00
- Max. Stock Width: 25”
- Max. Stock Thickness: 9″
- Table Size (L x W): 52″ x 26″ (Including Extensions)
- Motor: 10HP, 220V, Single Phase
Description
The P|25 Planer brings a whole new standard for Heavy Duty thickness planers.
Oversized bearing housings ensure ultra-smooth, quiet performance and long life. Most thickness- planers in this class have only 2 or 4 speeds and it seems they never have the right speed for the job. The Laguna 25” comes standard with Electronic Variable Speed meaning you will ALWAYS have the exact speed required.
Another feature not normally found in this class is the standard PLC control which allows you to simply enter in the desired height and the bed moves automatically to that setting. You’ll never want to go back to turning a hand wheel to find your thickness (or even holding down a button for that matter!). The PLC in the Laguna Industrial 25″ planer also has automatic backlash compensation ensuring exact thicknesses.

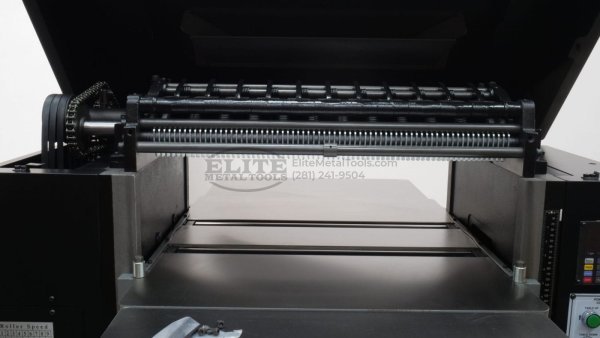

Of course, no world class planer would be complete without our incredible ShearTec II cutter head, which boasts 6 rows of 4 sided German carbide inserts for a total of 174 knives!
Features
- Motor, Cutterhead: 10HP, 1 Phase, 220 Volt
- Motor, Feed: 3/4 HP, DC Electronically Variable speed
- Motor, Vertical: 3/4 HP, AC
- DRO (Digital Read Out)
- PLC Programmable Height Setting
Specifications
- Push-Button Height Setting
- Manual Back-Up Height Setting
- Maximum Stock Width: 25″
- Maximum Stock Thickness: 9″
- Minimum Stock Thickness: 1/8″
- Minimum Stock Length: 10″
- Maximum Stock Removal:
- 01-12 Wide: 6 mm (1/4″)
- 12-25 Wide: 3 mm (1/8″)
- Electronic Variable Speed 10-30 FPM.
- Table Size (L xW): 52″ x 26″ (including extensions)
- ShearTecII Cutterhead: 6 row 174 Insert Knives
- Cutter-head Diameter: 3 1/2″
- Cutter-head Speed: 4800 RPM
- Knives: 174 ShearTec II, 4-sided, Solid Carbide
- Segmented In-feed Roller: 3″
- Segmented Pressure Bar
- 2 Polished Out-feed Rollers: 3″
- Retractable Table Rollers: Adjustable
- In/Out-Feed Cast Extensions Included (L xW): 10″ x 26″
- Dust port: 5″
- CSA Components
- Weight (Net/Ship): 1672/1848 Lbs.
Additional Information
| Manufacturer | Laguna Tools |
|---|---|
| SKU | MPLAN25-10-1-0130 |
| UPC | 640213052832 |
| Shipping Method | LTL Freight |
| Weight | 1,500 lb |
| Dimensions | 35 × 53 × 60 in |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
| Warranty Details | Must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. |
Product Documents
| Weight | 1500 lbs |
|---|---|
| Dimensions | 35 × 53 × 60 in |
| Brand | Laguna Tools |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
