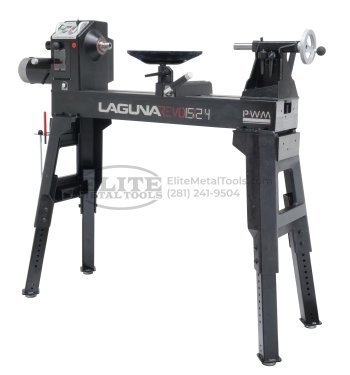

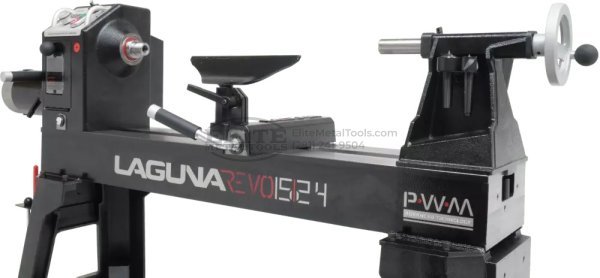

Laguna Tools Revo 15|24 1.5HP 110V Single Phase Lathe 415241
$3,058.00
- Distance Between Centers: 24″
- Swing Over Bed: 15 1/2″
- Max Outboard Swing with optional accessory: 25″
- Motor: 1.5HP, 110V, Single Phase
Description
Description
With the launch of the Revo 15|24 Laguna is filling the gap between the Revo 12|16 & the legendary Revo 18|36, providing space constrained users with more power and capacity.
Features
- World-class fit and finish Laguna is known for.
- Sliding headstock for ergonomic outboard bowl turning

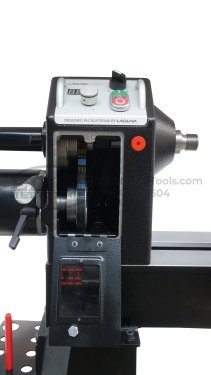

- Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
- Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
- Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
- Steel bed provides strength, stability and a surface that the banjo will glide across smoothly
- A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
Specifications
- Electrical: 1.5HP, 110 Volt, 8 Amp, 60Hz.
- Motor: Permanent Magnet DC, 2150 RPM
- PWM: Pulse Width Module Speed Control
- Recommended Breaker: 15 Amp
- Spring Loaded Spindle Lock
- Swing Over Bed: 15 1/2″
- Swing Over Banjo: 11 3/32″
- Max. Outboard Swing with optional accessory: 25″
- Tool-Rest Post Size: 1″
- Tool-Rest Length: 12″
- Bed Gap: 50mm
- Spindle Taper: MT#2
- RPM High: 650-4200
- RPM Mid: 325-2100
- RPM Low: 50-650
- Accepts Vacuum Chuck: No
- Tailstock Quill: #2 MT
- Floor To Spindle Center Low: 36 13/32″
- Floor To Spindle Center High: 51 13/32″
- Floor To Bed Min.: 25 19/32″
- Floor To Bed Max.: 43 19/32″
- Front Bearing: TPI Taiwan 6206LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Index #: 24 w/ Lock
- Distance Between Centers: 24″
- Headstock/Tailstock Through-Bore: 3/8″
- Headstock Travel: Full Length
- Tailstock Storage of Centers
- Spindle Size: 1 1/4″ x 8TPI RH
- Floor Space (W x D x H): 60″ x 22″ x 22″
- CSA C/US: 256540
- Box Dimensions (L x W x H): 52″ x 22″ x 22″
- Weight (Net/Ship): 288/302 lbs
Available Options
- REVO 15|24: Banjo
- 20” Extension for Revo 15|24
- REVO 15|24 Wheel System
- LED, Light Double Arm, Rectangular
Additional Information
| Manufacturer | Laguna Tools |
|---|---|
| SKU | 415241 |
| UPC | 195444074950 |
| Shipping Method | LTL Freight |
| Weight | 302 lb |
| Dimensions | 52 × 22 × 22 in |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
| Warranty Details | m |
