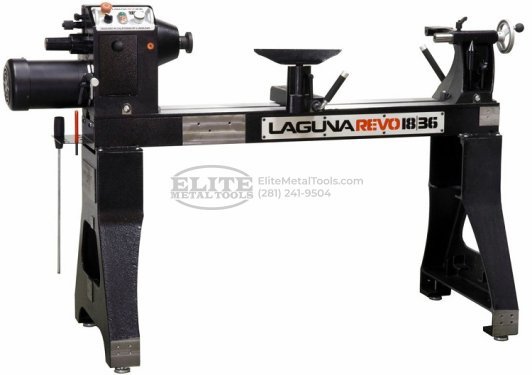

Laguna Tools Revo 18|36 1.5HP 110V Single Phase Lathe MLAREVO 1836-110
$3,798.00
- Distance Between Centers: 36″
- Swing Over Bed: 18″
- Max Outboard Swing with optional accessory: 32″
- Motor: 1.5HP, 110V, Single Phase
Description
The 18|36 Lathe features a brand new design & details that will excite any serious bowl turner!

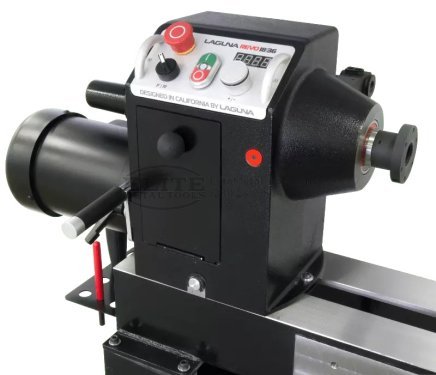

The first feature that will catch your attention is undoubtedly the ergonomic angled control panel made from anodized aluminum. The blue hue of the DRO along with the beautiful knurled control knob fitted with a rubber grip signals this is no ordinary lathe.
The bed is made from steel, allowing the cast iron headstock to travel incredibly smoothly. Steel is the preferred material due to its well known longevity & strength.
Electronic variable speed is obtained via a VFD that converts 1 phase input to 3 phase output, so even at low settings you will get an incredible amount of torque. The DRO gives you an accurate RPM readout whenever any fine adjustments are made electronically. Changing from high to low settings is made easy by using the quick release handle.
The headstock & tailstock lock handles are situated on the back to eliminate any interruptions to your work flow. Ergonomically designed handles use a cam lock resulting in a firm feel with no deflection.
Features
- World-class fit and finish Laguna is known for.
- Sliding headstock for ergonomic outboard bowl turning
- Infinite electronic variable speed from 50 – 4200 RPM with a 3 step pulley
- Extraordinary torque even at low speeds, powered by Laguna Pulse Width Modulation
- Adjustable-height legs allow a more ergonomic working position tailored to individuals needs
- Steel bed provides strength, stability and a surface that the banjo will glide across smoothly

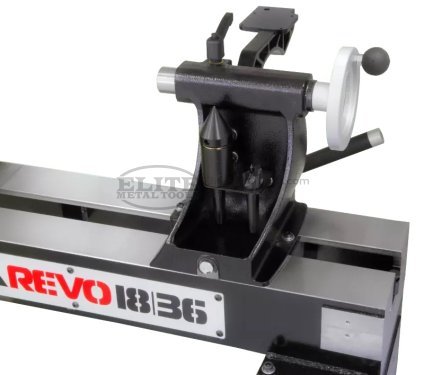

- A brand new feature is the patent-pending Precise Point that allows you to dial in the tailstock quill to meet with the headstock center
Specifications
- Electrical: 1.5HP, 110 Volt, 60 hz
- Motor: Induction, 1725 RPM, TEFC
- VFD: Delta S1 Variable Frequency Drive
- Phase: 1 Phase Input, 3 Phase Output
- Poly-Groove Drive Belt with EZ Access
- Recommended Breaker: 15 Amp
- Spring Loaded Spindle Lock
- Maximum Outboard Swing: 32″ (w/ Optional 20″ Extension Kit Installed)
- Swing Over Banjo: 13 1/2″
- Steel Bed: ASTM A36
- Toolrest Post Size: 1″
- Bed Gap: 50mm
- Spindle Taper: MT#2
- Swing Over Bed: 18″
- RPM High: 135-3500
- RPM Low: 50-1300
- Tailstock Quill: #2 MT
- Floor To Spindle Center: 41 1/2″ with Pads
- Accepts Vacuum Chuck: Yes
- Front Bearing: TPI Taiwan 6207LLU
- Rear Bearing: TPI Taiwan 6205LLU
- Spindle Index #: 14/36/48 with Lock
- Distance Between Centers: 36″
- Headstock Through-Bore: 3/8″
- Headstock Travel: Full Length
- Tailstock Through-Bore: 3/8″
- Tailstock Storage of Centers
- Spindle Size: 1 1/4″ x 8 TPI RH
- Floor To Bed: 32 1/2″ with Pads
- Floor Space (W x L x H): 60″ x 26″ x 47″
- Shipping Weight: 570 lbs
- Shipping Dimensions (L x W x H): 61″ x 27″ x 28″
Available Options
- 12″ Swing-Away Extension
- REVO 18|36 & 24|36: 20″ Extension
- 3″ Riser Blocks for Revo 18/36
- Single Cast Iron Leg with Pads
- Comparator for copying
- Headstock Guard
- 58 1/2 REVO Bed with No Leg
- Laguna Revo 18|36 Vacuum System
- Deluxe Wheel System
- LED Light Double Arm, Rectangular Head
- REVO 18|36: Banjo
Additional Information
| Manufacturer | Laguna Tools |
|---|---|
| SKU | MLAREVO 1836-110 |
| UPC | 642872598928 |
| Shipping Method | LTL Freight |
| Weight | 570 lb |
| Dimensions | 61 × 27 × 28 in |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
| Warranty Details | Must be registered with Laguna Tools within 30 days of purchase to be covered by this warranty. |
Product Documents
| Weight | 570 lbs |
|---|---|
| Dimensions | 61 × 27 × 28 in |
| Brand | Laguna Tools |
| Country of Origin | Taiwan |
| Warranty | 2 Years (Parts) |
