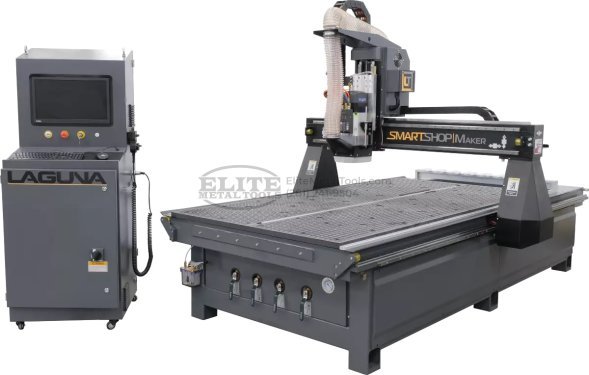

Laguna Tools SmartShop M 4’ x 8’ 220V Three Phase CNC Table Router MCNC SS-M2 4×8 SYNTEC

Description

Designed for simplicity and ease of use, the Smartshop® M focuses on cost-effectiveness, performance, and value. With a 6 HP spindle, 8-position tool changer, and a multi-zone vacuum table, you get all features of a higher-level production machine at an economical price.

Features

• 6HP Spindle
• 8 Position Automatic Tool Changing System
• 12″ Z-Clearance
• 13″ Z Travel
• Up To 600 IPM Rapid Speed
• Vacuum Table (4 Zone For 4′ x 8′ & 6 Zone For 5′ x 10′)
• Nema 34 Stepper Drive Motor
• Syntec Control System

Specifications

• Motor: 220V, Three Phase
• Spindle Options
  • 6HP Spindle
  • Up To 600 IPM Rapid Travel
  • ISO 30 Tool Cones. 4 Cones Included
  • 25mm Heavy-Duty HiWin HG Series Linear Bearings For ALl Axis
  • Spindle Speed Control Through Programming
  • Manual Overrides Of Spindle Speed and Feed Speeds During Run
  • Centralized Lubrication System For All Axes

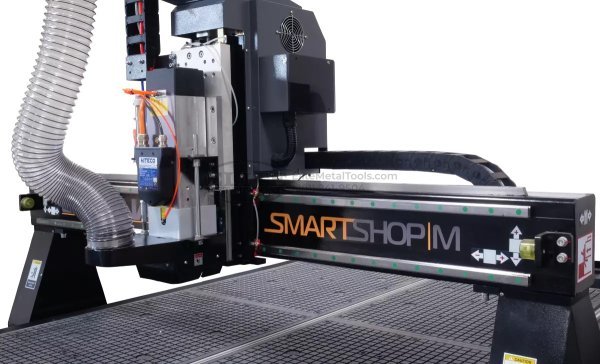

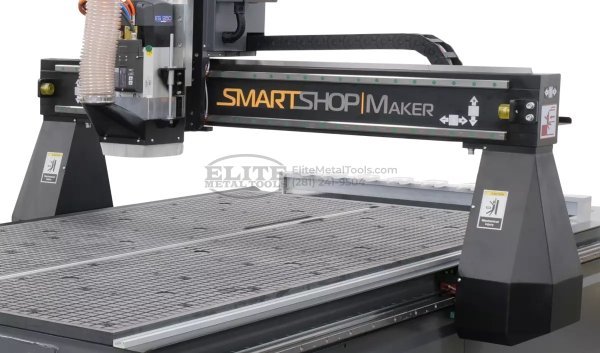

• Frame & Gantry
  • Helical Rack-and-Pinion Drives On X and Y Axes
  • Precision-Ground Ball Screw Drive On Z Axis
  • 12″ Z Clearance
  • 13″ Z Travel
  • Heavy-Duty Welded Tubular Steel Frame
  • Two Helical Rack-and-Pinion Drives On Gantry Y Axis
  • 8 Position Automatic Tool Changer

Available Options

• Volts: 220V, Single Phase
• Plotting CNC ISO20 Attachment
• 5.4° x 1/16” x 1” x 1/4” x 3” Tapered Angle Ball Tip DLC Bit
• 1/4” x 3/4” x 1/4” x 2” Single O Flute Bit
• 1/8” x 1/2” x 1/4” x 2” Single O Flute Bit
• 1-1/2” x 5/8” x 1/2” x 2” 1.5 Flycutter
• 1/4” x 3/4” x 1/4” x 2-1/2” 2 Flutes Down Spiral Bit
• 3/8” x 7/8” x 3/8” x 3” 2 Flutes Compression Bit
• 1/8” x 1/2” x 1/4” x 2” 2 Flutes Down Spiral Bit
• 1/4” x 7/8” x 1/4″ x 2-1/2” 2 Flutes Compression Bit
• 1/4″ x 1” x 1/4” x 2-1/2” 2 Flutes Ball Nose
